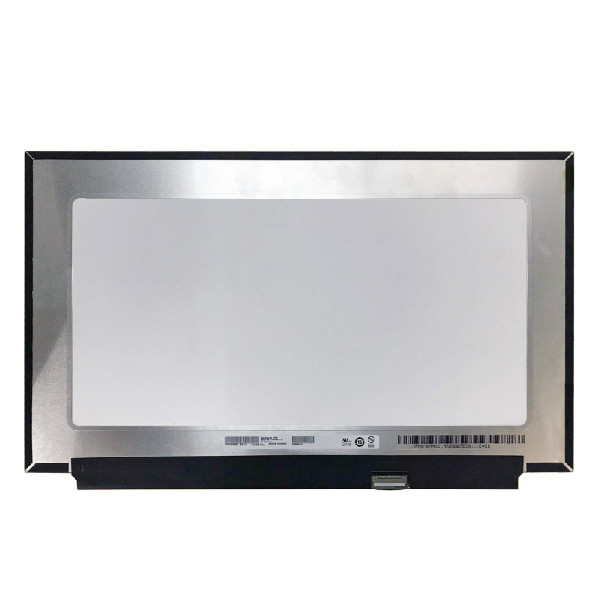

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN12.0 1920*1080 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN12.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN12.0 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1920(RGB)×1080, FHD, 141PPI |
| Display Area: | 344.16 X 193.59(mm) | Outline Size: | 350.66 X 216.15 X 2.6(mm) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop Gaming |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN12.0 1920*1080 141PPI
B156HAN12.0 Product details :
| AUO LCD Screen B156HAN12.0 | |
| Panel Brand | AUO |
| Panel Model | B156HAN12.0 |
| screen size | 15.6inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 344.16 X 193.59(mm) |
| Outline Size | 350.66 X 216.15 X 2.6(mm) |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 8 (Typ.)(tr+tf); 3 (Typ.)(g to g) ms |
| Best View on | Symmetry |
| Display Mode | AHVA, Normally Black, Transmissive |
| Number of colors | 16.7m 100% srgb |
| Backlight type | WLED , 15K hours, with LED driver |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Frequency | 300Hz |
| Application | Laptop Gaming |
| Signal Interface | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN12.0 1920*1080 141PPI | |
B156HAN12.0 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B156HAN12.0 Top Quality:
All screens are New&Original with original factory sealed package
Fully Testing make sure every screen you got is work perfec
B156HAN12.0 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HAN12.0 Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
B156HAN12.0 FAQ:
Q: What happen if the B156HAN12.0 I receive can't work ?
A: The B156HAN12.0 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel B156HAN12.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of B156HAN12.0 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: WE are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
B156HAN12.0 Shipping and Package :
