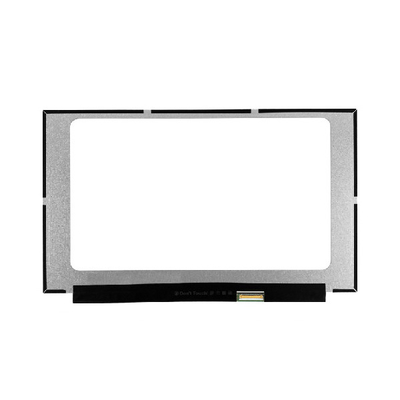

AUO Vertical Stripe 15.6 Inch LCD Pane B156XTK02.0 1920*1080 40 pins
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTK02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156XTK02.0 | Panel Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1366(RGB)×768, WXGA, 100PPI |
| Display Area: | 344.23(W)×193.54(H) Mm | Outline Size: | 350.66 × 216.15 × 3.2mm (H×V×D) |
| Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTK02.0 1920*1080 40 pins
B156XTK02.0 Product details :
| AUO LCD SCREEN B156XTK02.0 | |
| Panel Brand | AUO |
| Panel Model | B156XTK02.0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.23(W)×193.54(H) mm |
| Outline Size | 350.66 × 216.15 × 3.2mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Response | 6 o'clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 44% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Application | Laptop |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Touch Screen | On-Cell Touch |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTK02.0 1920*1080 40 pins | |
