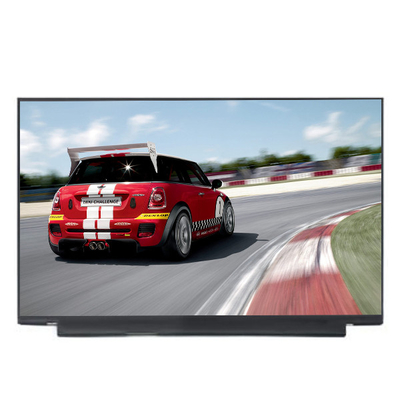

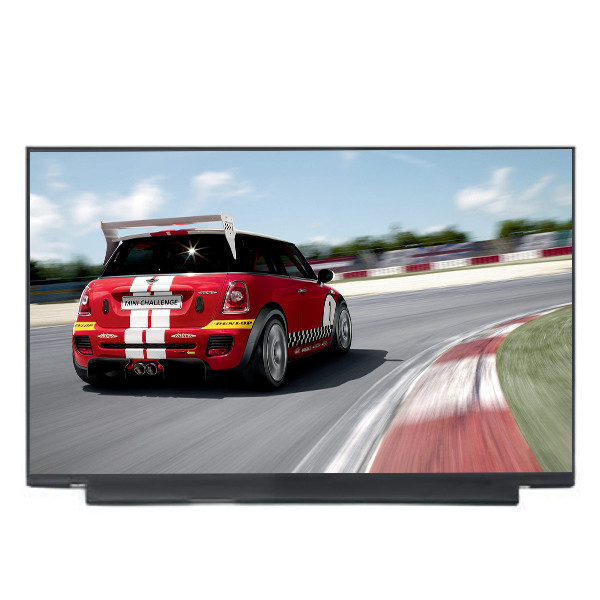

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN08.2 40 pins LCE SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN08.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HAN08.2 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Type: | A-Si TFT-LCD , LCM | Active Area: | 1920(RGB)×1080 FHD 141PPI |
| Outline Dim.: | 350.66 × 216.15 × 3.2 Mm (H×V×D) | Bezel Area: | 344.16(H)×193.59(V) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Used For: | Laptop Gaming |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN08.2 40 pins LCE SCREEN
B156HAN08.2 Product details :
| AUO LCD SCREEN B156HAN08.2 | |
| Panel Brand | AUO |
| Panel Model | B156HAN08.2 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(H)×193.59(V) mm |
| Outline Size | 350.66 × 216.15 × 2.8 mm (H×V×D) |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 9 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Used for | Laptop Gaming |
| Frequency | 60Hz |
| Touch Screen | Without |
| Refresh Rate | 144Hz |
| Signal Interface | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| Input Voltage | 3.3/3.6V (Min./Max.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN08.2 40 pins LCE SCREEN | |
Hello, dear customers. Welcome to our shop.
We sell all brands of laptop screens, such as the screen for Lenovo HP Asus Acer Dell, and so on. If you need any other laptop screens, please feel free to contact us.
B156HAN08.2 Attention before buying:
To avoid mistakes, please send us your screen backside photo or laptop model label photo after placing an order. We will ship your goods as soon as possible after confirming the screen is suitable for your laptop.
B156HAN08.2 Quality:
We are a professional company, the quality of our products are Grade A+++, without any dead pixels. And all of our products will be tested in real laptops to confirm they will work well before shipping, so you don't need to worry about that.
B156HAN08.2 Our features :
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
B156HAN08.2 Shipping details:
1. We support shipment by AliExpress Standard Shipping ,ePacket, Singapore Post, e-EMS, DHL etc. If you want to select a fast and reliable shipping company, please feel free to contact us directly after paying.
2. Shipping time: We will ship your goods in 1-2 days after confirming the screen is suitable for your laptop. So please tell us the model of your laptop or screen quickly so that we can ship your goods as soon as possible.
3. General arrived time:
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-35 days
B156HAN08.2 After-Sale:
If you have any problem after receiving your goods, don't give bad feedback first, please provide us with the proof of video or photo about the problems of your goods, we will offer replacement immediately or refund after confirming the problem.
If you have any questions in the process of purchase, please feel free to contact us. We will reply immediately.
Wish you a happy shopping!
B156HAN08.2 FAQ:
Q: How long will I receive my goods B156HAN08.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:Can you give me a discount if I need a large quantity of B156HAN08.2 ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of B156HAN08.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
B156HAN08.2 Shipping and Package :
