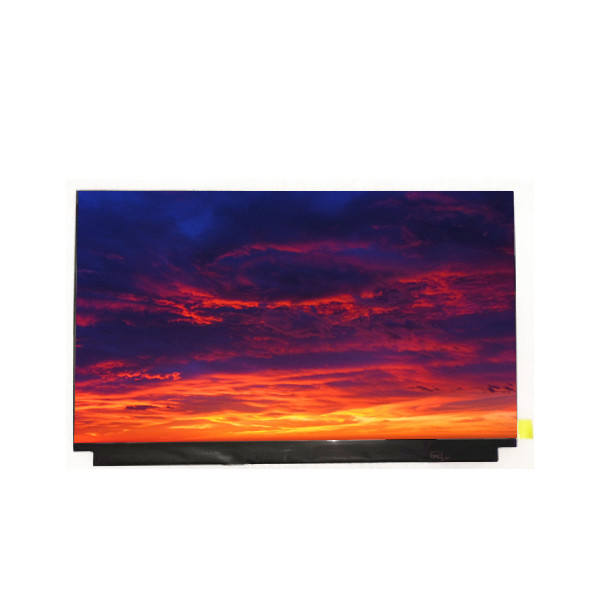

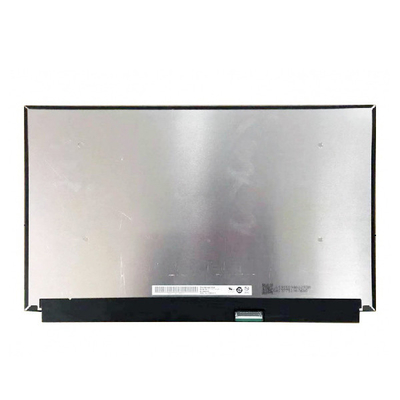

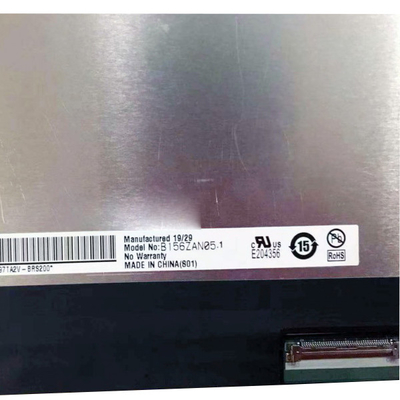

AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN05.1 40 pins LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156ZAN05.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156ZAN05.1 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Type: | A-Si TFT-LCD , LCM | Active Area: | 3840(RGB)×2160 UHD 283PPI |
| Outline Dim.: | 350.66(W)×216.45(H)×2.6(D) Mm | Bezel Area: | 344.218(W)×193.622(H) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Used For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN05.1 40 pins LCD SCREEN
B156ZAN05.1 Product details :
| AUO LCD SCREEN B156ZAN05.1 | |
| Panel Brand | AUO |
| Panel Model | B156ZAN05.1 |
| Panel Size | 15.6" |
| Panel Type | LTPS TFT-LCD , LCM |
| Resolution | 3840(RGB)×2160 UHD 283PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.218(W)×193.622(H) mm |
| Outline Size | 350.66(W)×216.45(H)×2.6(D) mm |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 8.3 (Typ.)(G to G) ms |
| Display Colors | 16.7M 100% Adobe RGB |
| Lamp Type | Mini LED , 15K hours, with LED driver |
| Designed For | Laptop |
| Frequency | 120Hz |
| Touch Screen | Without |
| Signal Interface | eDP (4 Lanes) , eDP1.4 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN05.1 40 pins LCD SCREEN | |
Hello, dear customers. Welcome to our shop.
We sell all brands of laptop screens, such as the screen for Lenovo HP Asus Acer Dell, and so on. If you need any other laptop screens, please feel free to contact us.
B156ZAN05.1 Attention before buying:
To avoid mistakes, please send us your screen backside photo or laptop model label photo after placing an order. We will ship your goods as soon as possible after confirming the screen is suitable for your laptop.
B156ZAN05.1 Quality:
We are a professional company, the quality of our products are Grade A+++, without any dead pixels. And all of our products will be tested in real laptops to confirm they will work well before shipping, so you don't need to worry about that.
B156ZAN05.1 Our features :
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
B156ZAN05.1 Payment Items:
Wire Transfer /MoneyGram /Western Union / PayPal /WeChat Pay / AliPay / Credit Card
B156ZAN05.1 Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
B156ZAN05.1 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
B156ZAN05.1 FAQ:
Q: When would you ship,IF I order B156ZAN05.1 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
B156ZAN05.1 Shipping and Package :
