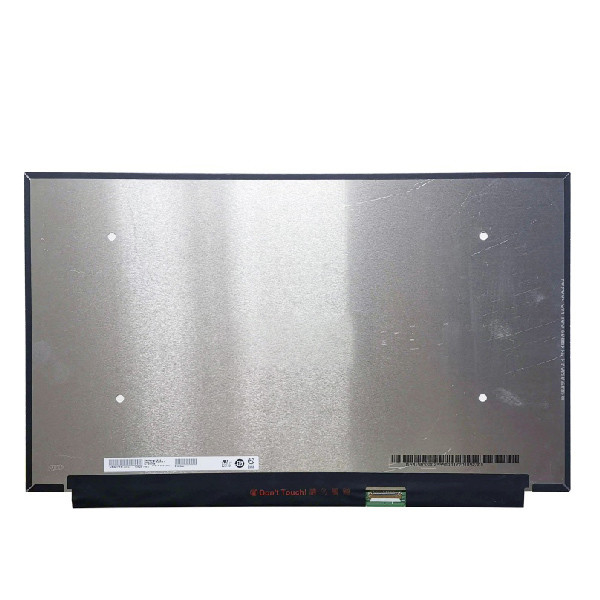

AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN04.1 40pins LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156ZAN04.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156ZAN04.1 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Type: | LTPS TFT-LCD , LCM | Active Area: | 3840(RGB)×2160 UHD 283PPI |
| Outline Dim.: | 359.5 × 223.8 × 3.2 (H×V×D) | Bezel Area: | 350.66(H)×216.45(V) ×3.2(D) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Used For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN04.1 40pins LCD SCREEN
B156ZAN04.1 Product details :
| AUO LCD SCREEN B156ZAN04.1 | |
| Panel Brand | AUO |
| Panel Model | B156ZAN04.1 |
| Panel Size | 15.6" |
| Panel Type | LTPS TFT-LCD , LCM |
| Resolution | 3840(RGB)×2160 [UHD] 283PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.218(horizontal)×193.622(vertical) mm |
| Outline Size | 344.218(H)×193.622(V) mm |
| Treatment | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Display Colors | 1.06B , 100% Adobe RGB |
| Lamp Type | WLED , 15K hours, with LED driver |
| Designed For | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | eDP (4 Lanes) , eDP1.4a , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156ZAN04.1 40pins LCD SCREEN | |
B156ZAN04.1 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems, please do not leave negative feedback or open dispute before contacting us, Please send us message via AliExpress and we will solve the problem for you immediatel
4. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
5. Provide a 90-day warranty time, man-made damage and natural disasters are not covered by the warranty! (calculated from the time the goods arrive at the destination)
B156ZAN04.1 Our features :
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
B156ZAN04.1 Payment Items:
Wire Transfer /MoneyGram /Western Union / PayPal /WeChat Pay / AliPay / Credit Card
B156ZAN04.1 Packaging:
Normal packagingExport carton
custom packing
B156ZAN04.1 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
B156ZAN04.1 FAQ:
Q:Can You declare my order of B156ZAN04.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can I pay my order of B156ZAN04.1 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q:Can you give me a discount if I need a large quantity of B156ZAN04.1 ?
A:Of course!If you make a large order, we will give you a discount.
B156ZAN04.1 Shipping and Package :
