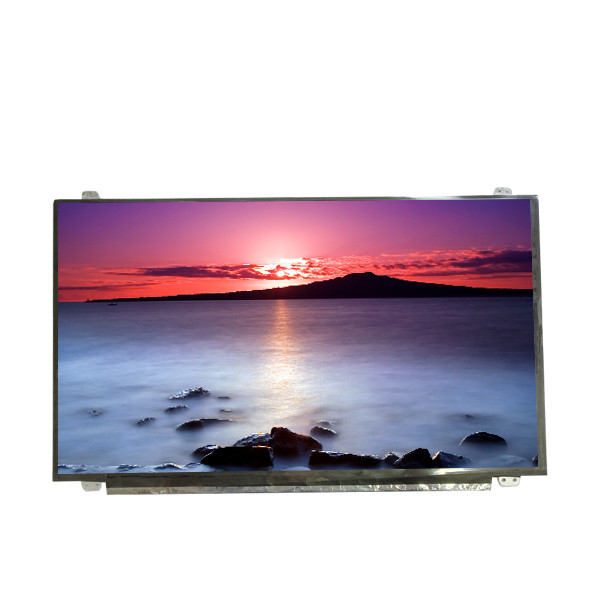

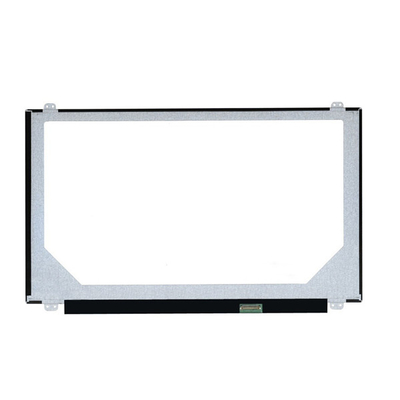

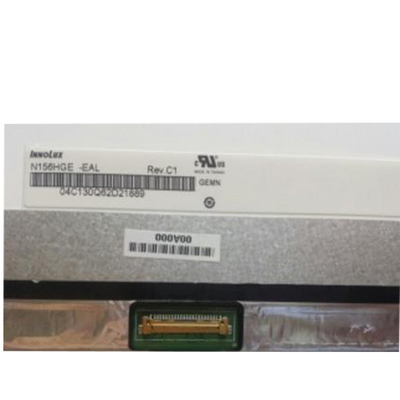

Innolux Vertical Stripe 15.6 Inch LCD Pane N156HGE-EAL 1920*1080 30pins
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | N156HGE-EAL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N156HGE-EAL | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 141PPI | Display Area: | 344.16 × 193.59 (H×V) |
| Luminance: | 220 Cd/m² (Typ.) | Viewing Angle: | 85/85/20/35 (Typ.)(CR≥10) |
| Color Depth: | 262K 94% NTSC | Application: | Laptop |
Product Description
Innolux Vertical Stripe 15.6 Inch LCD Pane N156HGE-EAL 1920*1080 30pins
N156HGE-EAL HW0A Product details :
| Innolux LCD SCREEN N156HGE-EAL | |
| Manufacturer | Innolux |
| Model Name | N156HGE-EAL |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Treatment | Antiglare (Haze 24%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/20/35 (Typ.)(CR≥10) |
| Response | 3/8 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 94% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Innolux Vertical Stripe 15.6 Inch LCD Pane N156HGE-EAL 1920*1080 30pins | |
N156HGE-EAL Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems, please do not leave negative feedback or open dispute before contacting us, Please send us message via AliExpress and we will solve the problem for you immediatel
4. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
5. Provide a 90-day warranty time, man-made damage and natural disasters are not covered by the warranty! (calculated from the time the goods arrive at the destination).
N156HGE-EAL Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N156HGE-EAL Portant:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
N156HGE-EAL Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
- To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
- To the USA, UK and Australia: 7-18 business days
- To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
N156HGE-EAL Payment and Tax:
1.Alipay is perferred and safety.
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
N156HGE-EAL Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
N156HGE-EAL FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of N156HGE-EAL ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods N156HGE-EAL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of N156HGE-EAL ?
A: The order will be shipped within 2-3 working days after received your payment.
N156HGE-EAL Shipping and Package :
