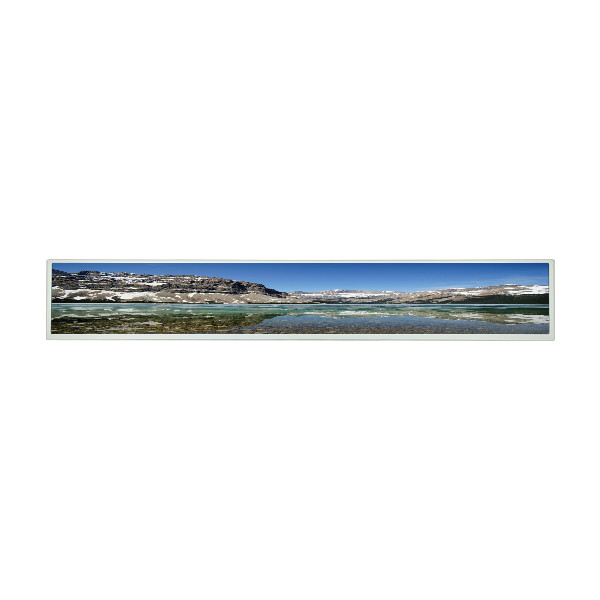

AUO LCD Screen Panel P420IVN03.0 42.0 inch 1920(RGB)×480 tft lcd display module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | P420IVN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P420IVN03.0 | Screen Size: | 42 Inch |
|---|---|---|---|
| Screen Type: | A-Si TFT-LCD, LCM | Active Area(mm): | 1039.68 × 259.92 (H×V) |
| Outline(mm): | 1059.48 × 283.32 × 56.9 (H×V×D) | Bezel Area(mm): | 1043.68 × 263.92 (H×V) |
| Mass: | 5.50Kgs | Used For: | Digital Signage / Stretched Bar LCD / Outdoor High Brightness |
Product Description
AUO LCD Screen Panel P420IVN03.0 42.0 inch 1920(RGB)×480 tft lcd display module
P420IVN03.0 Product details :
| AUO LCD SCREEN P420IVN01.0 | |
| Panel Brand | AUO |
| Panel Model | P420IVN01.0 |
| Panel Size | 42" (4/9 cut of 47") |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×480, 46PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1039.68(W)×259.92(H) mm |
| Bezel Opening | 1043.68(W)×263.92(H) mm |
| Outline Size | 1059.48(W)×283.52(H) ×56.9(D) mm |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 16.7M/1.07B 99% sRGB |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 5.5Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO LCD Screen Panel P420IVN03.0 42.0 inch 1920(RGB)×480 tft lcd display module | |
