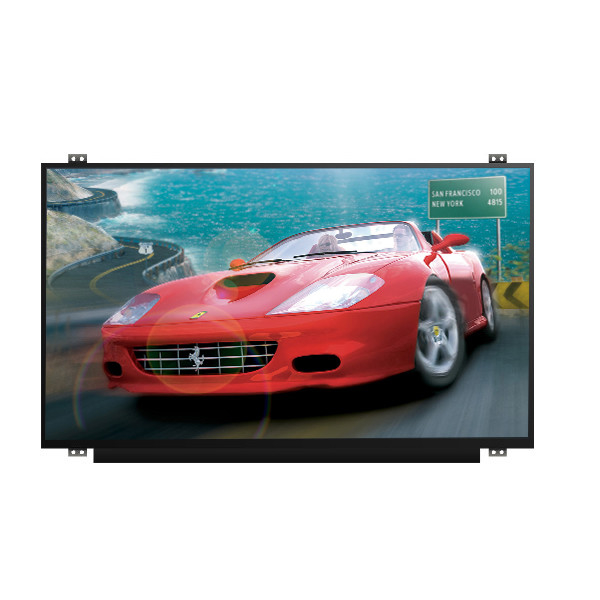

AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN07.1 30 pins LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN07.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156XTN07.1 | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 100PPI | Display Area: | 344.232 × 193.536 (H×V) |
| Luminance: | 220 Cd/m² (Typ.) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Color Depth: | 262K , 45% NTSC | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN07.1 30 pins LCD SCREEN
B156XTN07.1 Product details :
| AUO LCD SCREEN B156XTN07.1 | |
| Panel Brand | AUO |
| Panel Model | B156XTN07.1 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232 × 193.536 (H×V) |
| Outline Size | 359.5 × 223.8 × 3.2 (H×V×D) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8(Typ.)(Tr/Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Used for | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | eDP (1 Lane) , eDP1.2 , terminal, 30 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN07.1 30 pins LCD SCREEN | |
B156XTN07.1 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
B156XTN07.1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156XTN07.1 portant:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B156XTN07.1 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
- To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
- To the USA, UK and Australia: 7-18 business days
- To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
B156XTN07.1 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
B156XTN07.1 FAQ :
Q: How long is the warranty of B156XTN07.1 ?
A: 90 days warranty .
Q: Can I pay my goods B156XTN07.1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of lcd panel B156XTN07.1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
