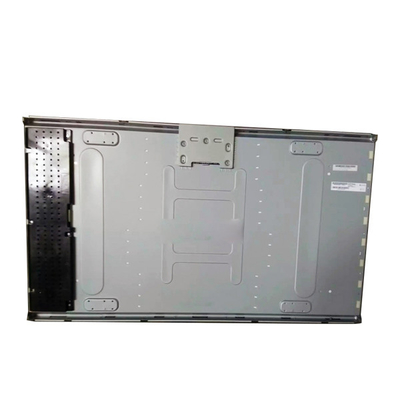

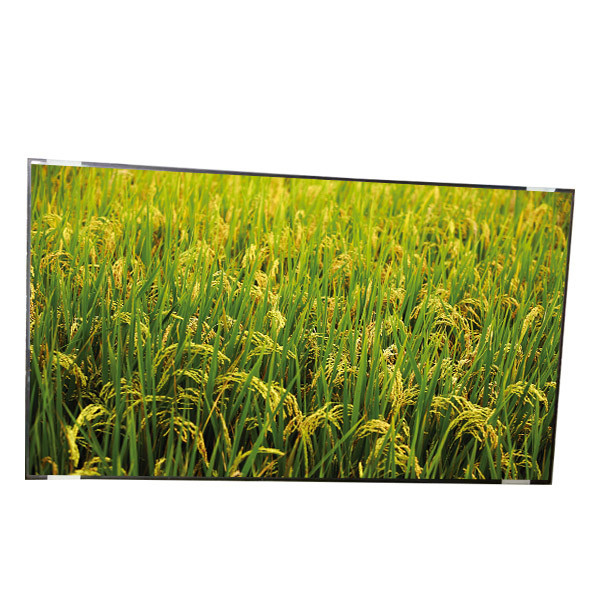

42.0 Inch TFT LCD Display Module P420HVN03.1 AUO LCD Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | P420HVN03.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | P420HVN03.1 | Panel Size: | 42" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Display Area: | 930.24(W)×523.26(H) Mm |
| Bezel Opening: | 938.6(W)×531.5(H) Mm | Outline Size: | 958.2(W)×551.1(H)×28.65(D) Mm |
| Panel Weight: | 9.5Kgs (Typ.) | Application: | Digital Signage |
| High Light: | digital signage lcd advertising,lcd display signage,lcd digital signage display |
||
Product Description
42.0 Inch TFT LCD Display Module P420HVN03.1 AUO LCD Panel
P420HVN03.1 Product details :
P420HVN03.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
As for mechanical detail, it features active area of 930.24(W)×523.26(H) mm, outline size of 958.2(W)×551.1(H)×28.65(D) mm, viewing area size of 938.6(W)×531.5(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 9.5Kgs (Typ.).
As a AMVA3, Normally Black, Transmissive LCM product, P420HVN03.1 can provides 700 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms.
Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 72% (NTSC).
This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 60K hours, With LED Driver. P420HVN03.1 utilizes LVDS (2 ch, 8/10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 120Hz (60Hz Input).
| AUO LCD SCREEN P420HVN03.1 | |
| Panel Brand | AUO |
| Panel Model | P420HVN03.1 |
| Panel Size | 42" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 52PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 930.24(W)×523.26(H) mm |
| Bezel Opening | 938.6(W)×531.5(H) mm |
| Outline Size | 958.2(W)×551.1(H) ×28.65(D) mm |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 16.7M/1.07B 72% NTSC |
| Lamp Type | WLED , 60K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 9.5Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 42.0 Inch TFT LCD Display Module P420HVN03.1 AUO LCD Panel | |
P420HVN03.1 Our Service:
Shipping:DHL,FedEx,UPS,HK Post Air Mail,EMS,ePacket and so on.
Payment:T/T, Bank transfer ,western union , Others can be in consideration.
Packing:Bubble bag+Bubble chamber+Suitable hard carton
After-sales service:If you have any problem about product, please feel free to contact us. We will reply you within 12 hours.
Warranty: Usually, product warranty for 180days.
MOQ:1 piece or Sample order will be available.
Advantages:Best Price, High Quality, Fast Delivery, Good Service, Responsible Salesperson.
Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
Quality:100% Grade A tested before shipping
P420HVN03.1 Shipping and Package :
P420HVN03.1 About Quality Warranty:
1. Our products are all original and new from manufacturer. It must be work if the model number is correct.
2. We offer 365 days warranty to our products.
P420HVN03.1 FAQ:
Q: How can I trace my order of P420HVN03.1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of P420HVN03.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of P420HVN03.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of P420HVN03.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
