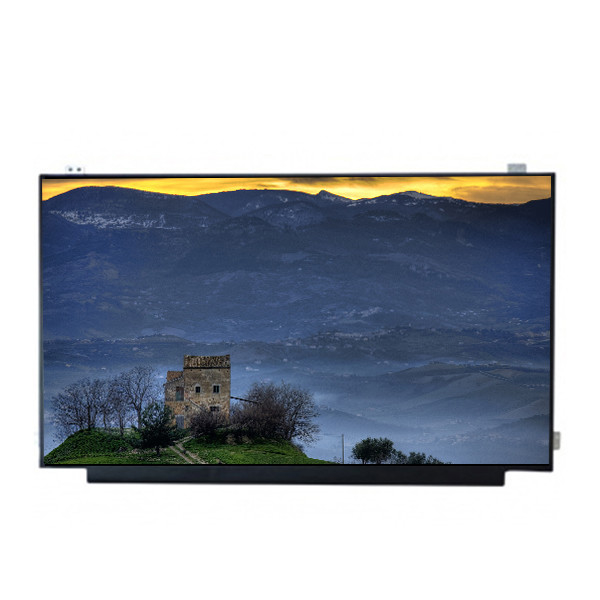

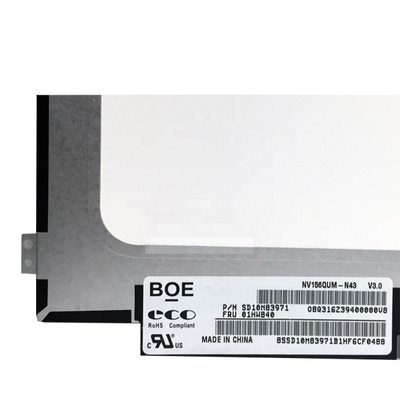

BOE Vertical Stripe 15.6 Inch LCD Panel NV156QUM-N43 Laptop LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NV156QUM-N43 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NV156QUM-N43 | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160 (UHD) 282PPI | Display Area: | 345.6 × 194.4 (H×V) |
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 100% SRGB | Application: | Laptop |
Product Description
BOE Vertical Stripe 15.6 Inch LCD Panel NV156QUM-N43 Laptop LCD SCREEN
NV156QUM-N43 Product details :
| BOE LCD SCREEN NV156QUM-N43 | |
| Manufacturer | BOE |
| Model Name | NV156QUM-N43 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 282PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 345.6 × 194.4 (H×V) |
| Treatment | Antireflection |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 35(Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Backlight | 9S8P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE Vertical Stripe 15.6 Inch LCD Panel NV156QUM-N43 Laptop LCD SCREEN | |
NV156QUM-N43 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
NV156QUM-N43 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
NV156QUM-N43 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
NV156QUM-N43 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
- To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
- To the USA, UK and Australia: 7-18 business days
- To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
NV156QUM-N43 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
NV156QUM-N43 FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NV156QUM-N43 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of NV156QUM-N43 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NV156QUM-N43 ?
A: We accept T/T , Paypal , western union .
NV156QUM-N43 Shipping and Package :
