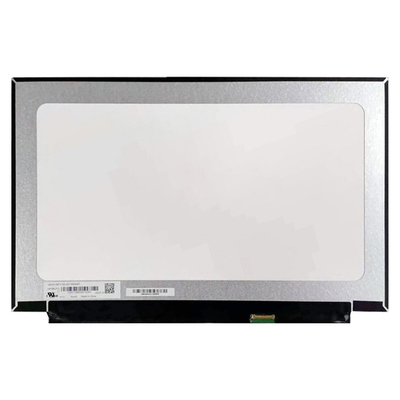

PANDA Vertical Stripe 15.6 Inch LCD Panel LM156LFCL11 1920*1080 Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LFCL11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM156LFCL11 | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 141PPI | Display Area: | 344.16 × 193.59 (H×V) |
| Outline Size: | 350.66 × 216.69 × 3.2 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 262K 45% NTSC | Application: | Laptop |
Product Description
PANDA Vertical Stripe 15.6 Inch LCD Panel LM156LFCL11 1920*1080 Laptop Screen
LM156LFCL11 Product details :
| PANDA LCD Screen LM156LFCL11 (NCP002D) | |
| Manufacturer | PANDA |
| Model Name | LM156LFCL11 (NCP002D) |
| Screen Size | 15.6 inch |
| Screen Type | LCM, Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.69 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| PANDA Vertical Stripe 15.6 Inch LCD Panel LM156LFCL11 1920*1080 Laptop Screen | |
LM156LFCL11 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
LM156LFCL11 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
LM156LFCL11 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
LM156LFCL11 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
- To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
- To the USA, UK and Australia: 7-18 business days
- To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
LM156LFCL11 Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
LM156LFCL11 FAQ :
Q: How long is the warranty of LM156LFCL11 ?
A: 90days warranty .
Q: Do you accept sample orders for LM156LFCL11 ?
A: Of course!sample order is welcome !
Q: Can I pay my goods LM156LFCL11 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LM156LFCL11 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
LM156LFCL11 Shipping and Package :
