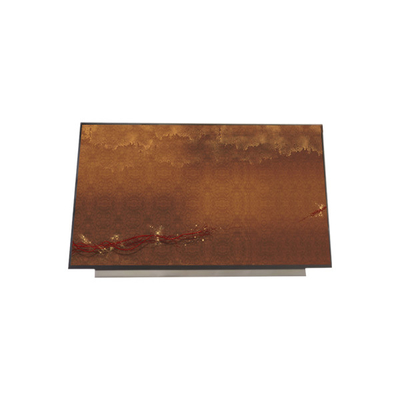

BOE Vertical Stripe 15.6 Inch LCD Panel NE156QUM-N66 40 pins Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NE156QUM-N66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NE156QUM-N66 | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160 (UHD) 283PPI | Display Area: | 344.218 × 193.622 (H×V) |
| Outline Size: | 350.66 × 216.45 × 2.6 (H×V×D) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth: | 1.07B 100% Adobe RGB | Application: | Laptop |
Product Description
BOE Vertical Stripe 15.6 Inch LCD Panel NE156QUM-N66 40 pins Laptop Screen
NE156QUM-N66 Product details :
| BOE LCD SCREEN NE156QUM-N66 | |
| Manufacturer | BOE |
| Model Name | NE156QUM-N66 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , Oxide TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 283PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.218 × 193.622 (H×V) |
| Outline(mm) | 350.66 × 216.45 × 2.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25(Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 1.07B 100% Adobe RGB |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE Vertical Stripe 15.6 Inch LCD Panel NE156QUM-N66 40 pins Laptop Screen | |
NE156QUM-N66 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
NE156QUM-N66 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
NE156QUM-N66 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
NE156QUM-N66 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
NE156QUM-N66 Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
NE156QUM-N66 FAQ :
Q: Do you accept sample orders of NE156QUM-N66 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NE156QUM-N66 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NE156QUM-N66 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of NE156QUM-N66 ?
A: we will give you tracking number then you can trace your order from website.
NE156QUM-N66 Shipping and Package :
