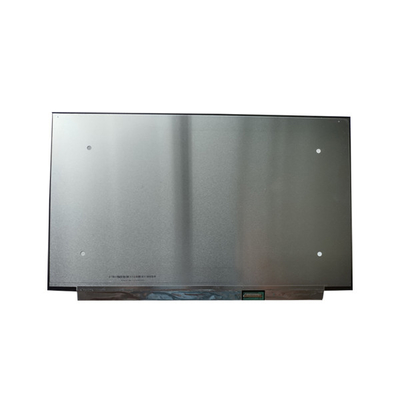

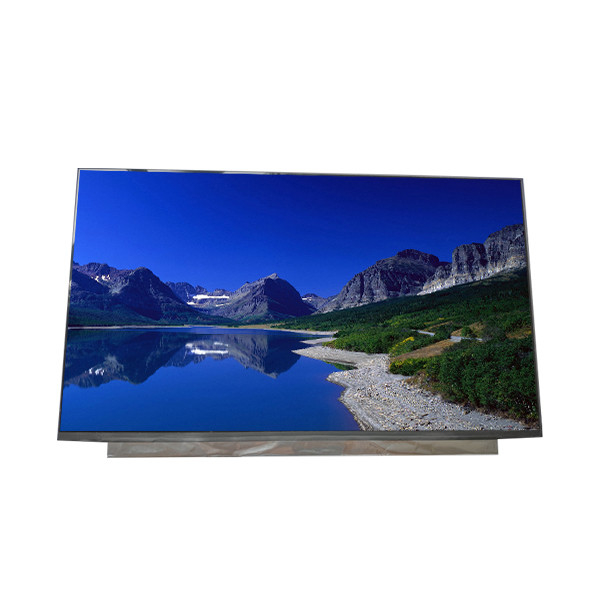

Innolux Vertical Stripe 15.6 Inch LCD Panel N156HCA-EBA LCD Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | N156HCA-EBA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N156HCA-EBA | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 141PPI | Display Area: | 344.16 × 193.59 (H×V) |
| Outline Size: | 350.76 × 216 × 3.2 (H×V×D) | Luminance: | 220 Cd/m² (Typ.) |
| Color Depth: | 262K 45% NTSC | Application: | Laptop |
Product Description
Innolux Vertical Stripe 15.6 Inch LCD Panel N156HCA-EBA LCD Laptop Screen
N156HCA-EBA Product details :
| Innolux LCD SCREEN N156HCA-EBA | |
| Manufacturer | Innolux |
| Model Name | N156HCA-EBA |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.76 × 216 × 3.2 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Innolux Vertical Stripe 15.6 Inch LCD Panel N156HCA-EBA LCD Laptop Screen | |
N156HCA-EBA NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
N156HCA-EBA Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N156HCA-EBA Payment:
T/T, WESTERN UNION, PAYPAL
Kindly Notice
1. Import duties taxes and other customs related charges are not included in the price
2. If you pay for it by PayPal, please confirm that your payment address is the same as your PayPal address
N156HCA-EBA About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
N156HCA-EBA Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
N156HCA-EBA FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods N156HCA-EBA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of N156HCA-EBA ?
A: Of course!sample order is welcome !
Q: Can I pay my order of N156HCA-EBA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
N156HCA-EBA Shipping and Package :
