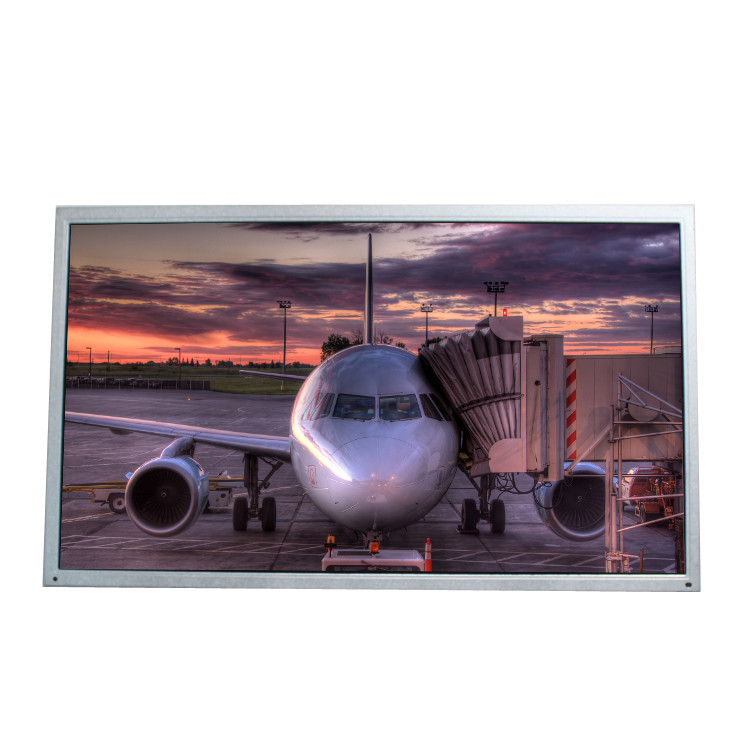

AUO Vertical Stripe 15.6 Inch LCD Panel G156XW01 V0 Industrial LCD Panel Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156XW01 V0 | Panel Size: | 15.6inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 100PPI | Display Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Size: | 344.232 × 193.536 Mm (H×V) | Brightness: | 300 (Typ.) |
| Color Depth: | 16.7M 65% NTSC | Application: | Industrial |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Panel G156XW01 V0 Industrial LCD Panel Display
G156XW01 V0 Product details :
| AUO LCD SCREEN G156XW01 V0 | |
| Panel Brand | AUO |
| Panel Model | G156XW01 V0 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Bezel Opening | 347.54 × 196.8 mm (H×V) |
| Outline Size | 363.8 × 215.9 × 14.8 (H×V×D) |
| Brightness | 300 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M 65% NTSC |
| Lamp Type | 2 pcs CCFL , 50K hours, no driver |
| Frequency | 60Hz |
| Used for | Industrial |
| Panel Weight | 1.16/1.30Kgs (Typ./Max.) |
| Touchscreen | Without |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Panel G156XW01 V0 Industrial LCD Panel Display | |
G156XW01 V0 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
G156XW01 V0 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
G156XW01 V0 Payment:
T/T, WESTERN UNION, PAYPAL
Kindly Notice
1. Import duties taxes and other customs related charges are not included in the price
2. If you pay for it by PayPal, please confirm that your payment address is the same as your PayPal address
G156XW01 V0 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
G156XW01 V0 Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
G156XW01 V0 FAQ :
Q: How long is the warranty of G156XW01 V0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of G156XW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of G156XW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I order G156XW01 V0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
G156XW01 V0 Shipping and Package :
