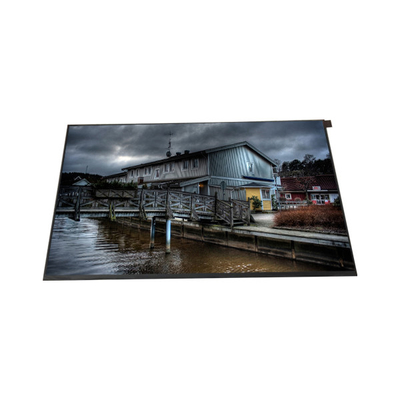

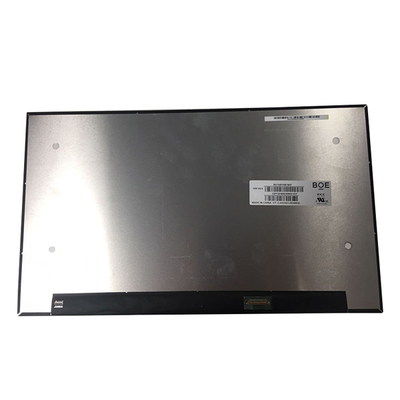

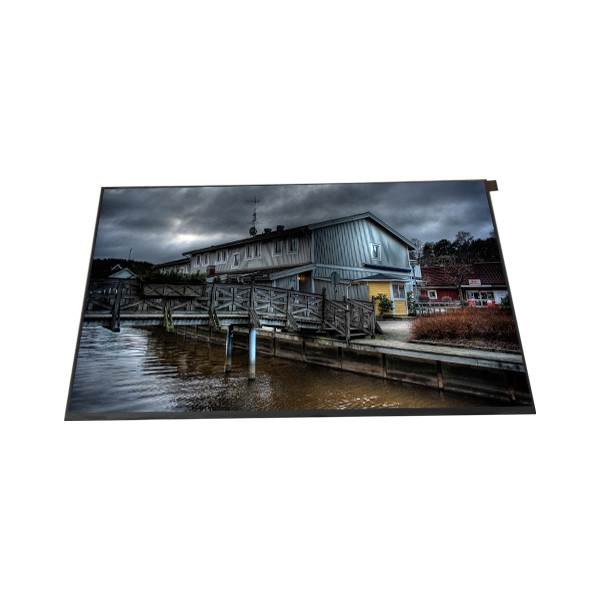

BOE Vertical Stripe 15.6 lcd panel NV156FHM-N4N 1920*1080 LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NV156FHM-N4N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV156FHM-N4N | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 350.66 × 216.25 × 3.2 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 72% NTSC | Used For: | Laptop/ Gaming |
Product Description
BOE Vertical Stripe 15.6 lcd panel NV156FHM-N4N 1920*1080 LCD Screen Display
NV156FHM-N4N Product details :
| BOE LCD SCREEN NV156FHM-N4N | |
| Manufacturer | BOE |
| Model Name | NV156FHM-N4N |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 9 (Typ.)(Tr+Td); 3.8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 8S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop/ Gaming |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE Vertical Stripe 15.6 lcd panel NV156FHM-N4N 1920*1080 LCD Screen Display | |
NV156FHM-N4N Our service:
1. We ship within 2~5days as soon as possible；
2. We support sample service, MOQ = 1；
3. We have strong R & D and production capabilities and have sufficient inventory；
4. We will innovate and develop new products every month；
5. We are OEM / ODM；
6. We are at your service 24 hours. Product quality issues can be returned at any time；
7. We ship your products with the fastest and best logistics；
NV156FHM-N4N Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
NV156FHM-N4N Customer Service Policy
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
NV156FHM-N4N FAQ :
Q: When will my order 15.6 inch lcd panel NV156FHM-N4N ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 15.6 inch lcd panel NV156FHM-N4N before shipping?
A: Don't Worry , The NV156FHM-N4N was tested ok before shipping
Q: What happen if NV156FHM-N4N I received can't work ?
A: The NV156FHM-N4N will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
