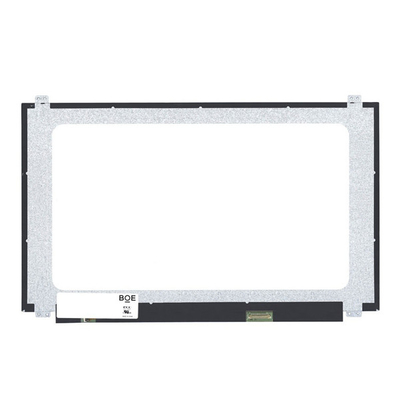

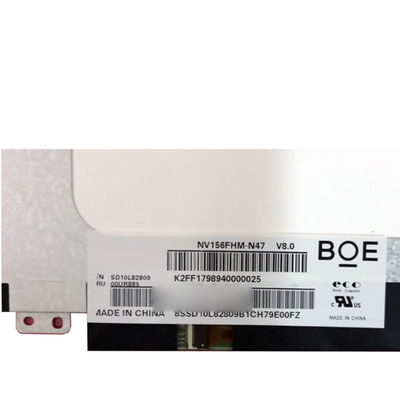

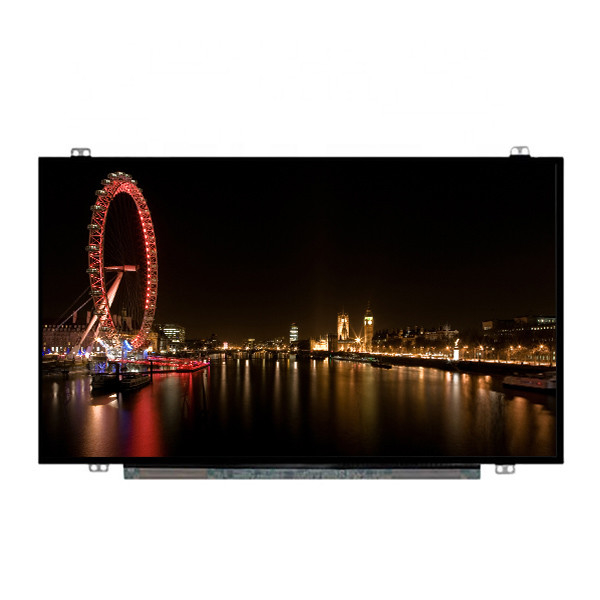

BOE Vertical Stripe 15.6 lcd pane NV156FHM-N47 LCD Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NV156FHM-N47 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NV156FHM-N47 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 (FHD) 141PPI | Active Area: | 344.16 × 193.59 (H×V) |
| Outline Dim.: | 350.76 × 223.8 × 3.2 (H×V×D) | Luminance: | 250 Cd/m² (Typ.) |
| Color Depth: | 262K 45% NTSC | Designed For: | Laptop |
Product Description
BOE Vertical Stripe 15.6 lcd pane NV156FHM-N47 LCD Laptop Screen
NV156FHM-N47 Product details :
| BOE LCD SCREEN NV156FHM-N47 | |
| Manufacturer | BOE |
| Model Name | NV156FHM-N47 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.76 × 223.8 × 3.2 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE Vertical Stripe 15.6 lcd pane NV156FHM-N47 LCD Laptop Screen | |
NV156FHM-N47 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
NV156FHM-N47 Note:
Product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
NV156FHM-N47 About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a
Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for.
NV156FHM-N47 About the shipping:
The recipient must be full name or company name.We use Aliexpresss standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers.
After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
NV156FHM-N47 About the return:
Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase
All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
Return of the goods, please keep the original packing sound.
If you have any questions, please don't open dispute, don't give us bad review. We will do our best to solve the problem and provide good after-sales service. Please keep in touch with us.
NV156FHM-N47 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price.
We are not responsible for all taxes and import duties.
Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
NV156FHM-N47 FAQ :
Q: How to make payment of NV156FHM-N47 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NV156FHM-N47 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods NV156FHM-N47 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
NV156FHM-N47 Shipping and Package :
