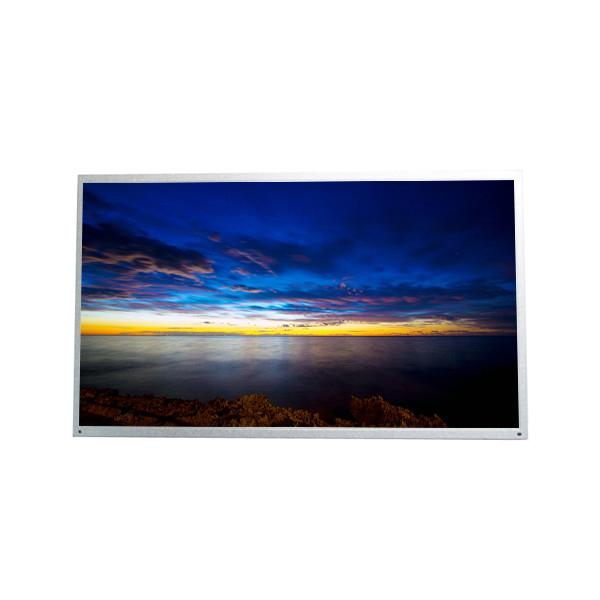

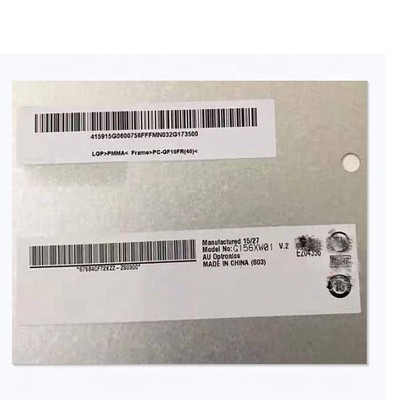

AUO Vertical Stripe 15.6 Inch LCD Panel G156XW01 V2 1366*768 30 Pin Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156XW01 V2 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 100PPI | Display Area: | 344.232(W)×193.536(H) Mm |
| Outline Size: | 363.8(W)×215.9(H) ×17.35(D) Mm | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Display Colors: | 16.2M 70% NTSC | Used For: | Industrial |
| High Light: | AUO 15.6 inch lcd panel,15.6 inch lcd panel G156XW01 V2,LVDS 15.6 inch 30 pin laptop screen |
||
Product Description
AUO Vertical Stripe 15.6 lcd pane G156XW01 V2 1366*768 LCD SCREENG
G156XW01 V2 Product details :
| AUO LCD SCREENG G156XW01 V2 | |
| Panel Brand | AUO |
| Panel Model | G156XW01 V2 |
| Panel Size | 15.6" |
| Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.54(W)×196.83(H) mm |
| Outline Size | 363.8(W)×215.9(H) ×17.35(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 70% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.2/1.35 (Typ./Max.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 lcd pane G156XW01 V2 1366*768 LCD SCREENG | |
G156XW01 V2 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G156XW01 V2 Shipping:
1. We will test them strictly before shipping.
2. We will ship it within 3 working days after we get the order.
3. The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping,It is faster than others.
4. * United States / United Kingdom / Australia may take 7-30 working days.
5. * Canada may take 7-35 working days.
6. * France / Spain / Germany may take 7-30 working days.
7. * Eastern Europe may take 16-30 working days.
8. * Italy / Brazil / South America may take 30-50 working days.
9. * Shipped by DHL Express: 7-12 working days (you need to pay extra fee).
G156XW01 V2 Warranty and Return:
1. We offer warranty for all of our products.
2. Buyers bear the shipping cost for returning defective or non-defective item to us.
3. Return items should be in good condition same as we sent, not damaged.
4. Returned items are subject to approval by us, it should be in original box as we sent.
5. Physically damaged items received should be reported within 2 days.
6. All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you boughtwrong item)
G156XW01 V2 FAQ :
Q: If I order G156XW01 V2 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G156XW01 V2 ?
A: Of course!sample order is welcome !
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of G156XW01 V2?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
