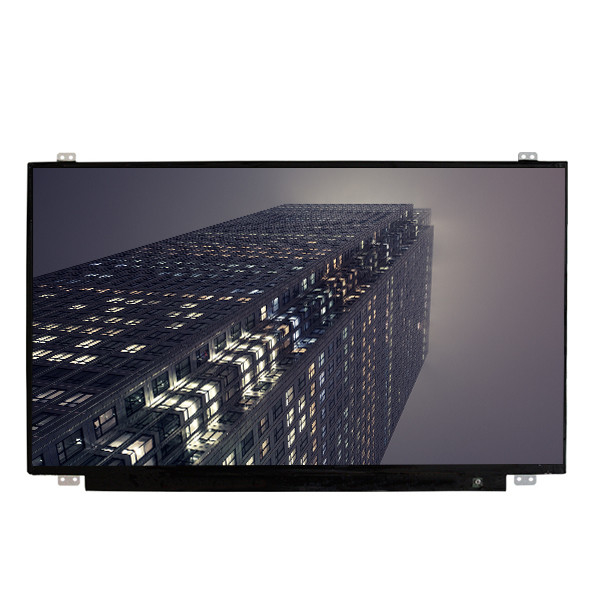

Antiglare Surface 15.6 LCD Panel G156XTN02.1 AUO Industrial Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XTN02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156XTN02.1 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 100PPI | Display Area: | 344.232(W)×193.536(H) Mm |
| Outline Size: | 359.5(W)×223.8(H) ×3.3(D) Mm | Viewing Angle: | 80/80/55/70 (Typ.)(CR≥10) |
| Display Colors: | 262K 45% NTSC | Used For: | Industrial |
| High Light: | Antiglare 15.6 LCD Panel,15.6 LCD Panel G156XTN02.1,250 cd/m2 Industrial LCD Panel Display |
||
Product Description
AUO vertical stripe 15.6 lcd pane G156XTN02.1 Industrial Display
G156XTN02.1 Product details :
| AUO LCD SCREENG G156XTN02.1 (AUO21EC) | |
| Panel Brand | AUO |
| Panel Model | G156XTN02.1 |
| Panel Size | 15.6" |
| Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H) mm |
| Outline Size | 359.5(W)×223.8(H) ×3.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/55/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 380g (Max.) |
| Application | Industrial |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO vertical stripe 15.6 lcd pane G156XTN02.1 Industrial Display | |
G156XTN02.1 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G156XTN02.1 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (not include Public holiday)
2. Working Hours: Monday to Saturday.
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
G156XTN02.1 Shipping:
1. We will test them strictly before shipping.
2. We will ship it within 3 working days after we get the order.
3. The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping,It is faster than others.
4. * United States / United Kingdom / Australia may take 7-30 working days.
5. * Canada may take 7-35 working days.
6. * France / Spain / Germany may take 7-30 working days.
7. * Eastern Europe may take 16-30 working days.
8. * Italy / Brazil / South America may take 30-50 working days.
9. * Shipped by DHL Express: 7-12 working days (you need to pay extra fee).
G156XTN02.1 Warranty and Return:
1. We offer warranty for all of our products.
2. Buyers bear the shipping cost for returning defective or non-defective item to us.
3. Return items should be in good condition same as we sent, not damaged.
4. Returned items are subject to approval by us, it should be in original box as we sent.
5. Physically damaged items received should be reported within 2 days.
6. All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you boughtwrong item)
G156XTN02.1 FAQ :
Q: If I order G156XTN02.1 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G156XTN02.1 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of G156XTN02.1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of G156XTN02.1 ?
A: 90days warranty .
G156XTN02.1 Shipping and Package :
