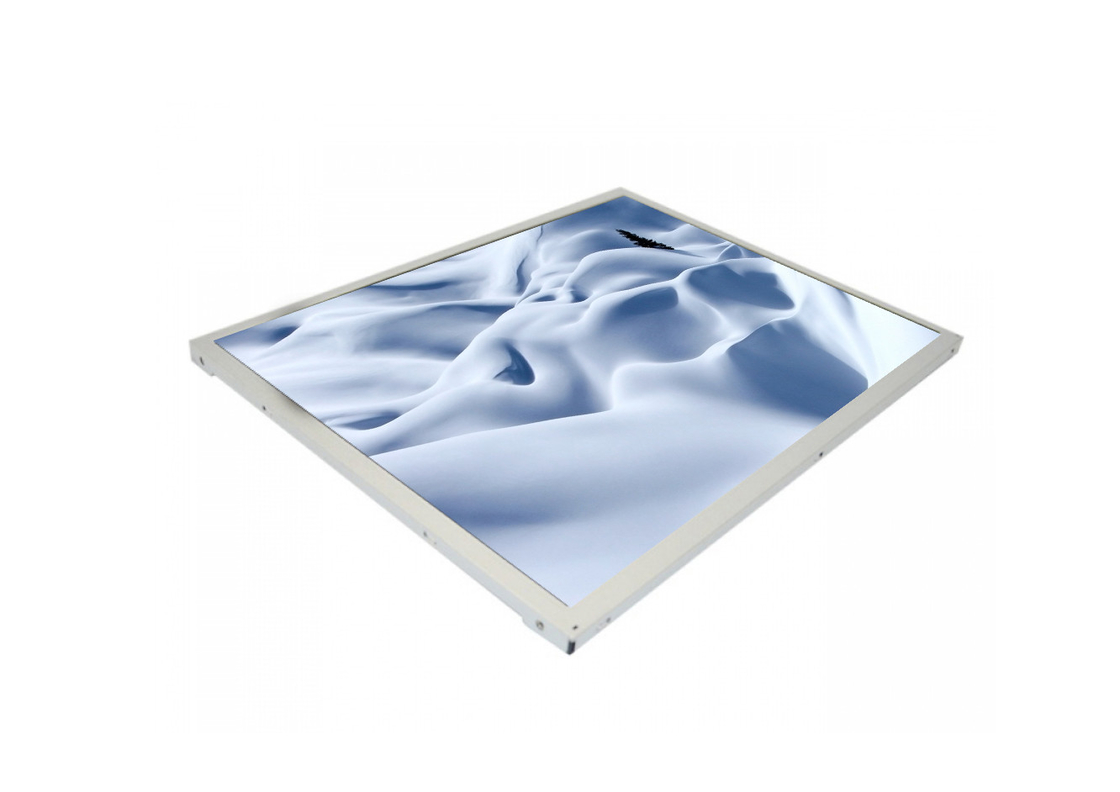

AUO 15.6 Inch LCD Panel G156XTN02.0 EDP 30 Pins RGB 1366×768 WXGA 100PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XTN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156XTN02.0 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 WXGA 100PPI | Display Area: | 344.232 × 193.536 (H×V) |
| Outline Size: | 359.5 × 223.8 × 3.2 (H×V×D) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K 45% NTSC | Used For: | Industrial |
| High Light: | WXGA 15.6 inch lcd panel,15.6 inch lcd panel G156XTN02.0,EDP 30 pin lcd panel |
||
Product Description
AUO vertical stripe 15.6 lcd panel G156XTN02.0 30 pins LCD Screen Display Panel
G156XTN02.0 Product details :
| AUO LCD SCREEN G156XTN02.0 | |
| Panel Brand | AUO |
| Panel Model | G156XTN02.0 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(horizontal)×193.536(vertical) |
| Outline Size | 359.5 (horizontal) × 223.8 (vertical) × 3.2 (thickness) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 380g (Max.) |
| Application | Industrial |
| Signal Interface | 30 pins eDP (1 Lane) , eDP1.2 , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO vertical stripe 15.6 lcd panel G156XTN02.0 30 pins LCD Screen Display Panel | |
G156XTN02.0 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G156XTN02.0 V4 Shipping :
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
G156XTN02.0 Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
G156XTN02.0 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
G156XTN02.0 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
G156XTN02.0 FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of AUO G156XTN02.0 ?
A: Yes, Welcome !
Q: How long the warranty of G156XTN02.0 ?
A: 90 days .
Q: What happen if the G156XTN02.0 I received can't work ?
A: Our G156XTN02.0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
G156XTN02.0 Shipping and Package :
G156XTN02.0 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
