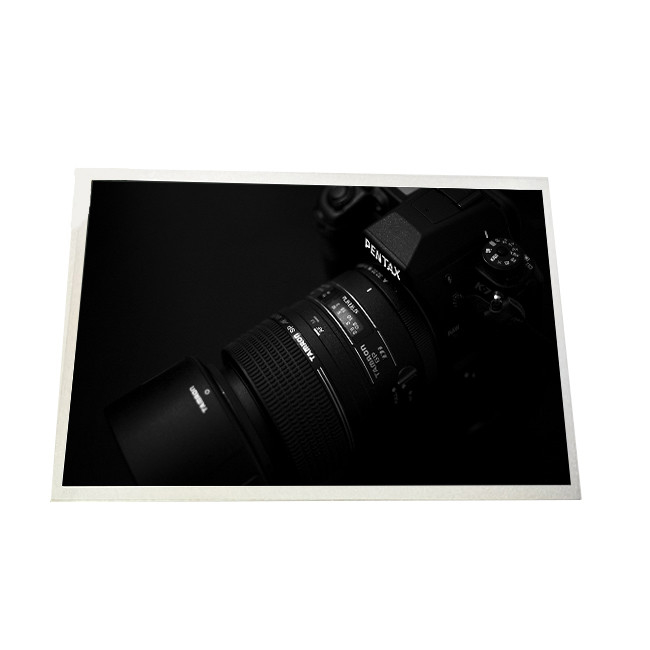

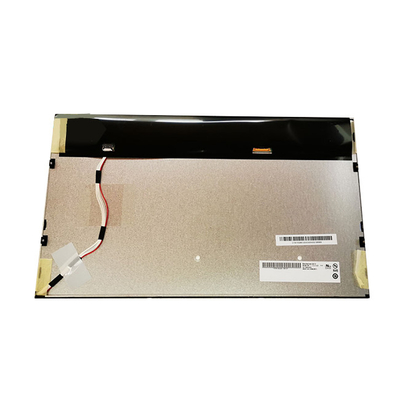

AUO Vertical Stripe LCD Panel 15.6 Inch G156XW01 V4 1366*768 LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XW01 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156XW01 V4 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 WXGA 100PPI | Display Area: | 344.232(horizontal)×193.536(vertical) Mm |
| Outline Size: | 363.8(horizontal)×215.9(vertical) Mm | Viewing Angle: | 85/85/80/80 (Typ.) (CR≥10) |
| Display Colors: | 16.2M , 62% NTSC | Used For: | Industrial |
| High Light: | AUO lcd panel 15.6 inch,G156XW01 V4 lcd panel 15.6 inch |
||
Product Description
AUO vertical stripe 15.6 lcd panel G156XW01 V4 1366*768 LCD SCREEN
G156XW01 V4 Product details :
| AUO LCD SCREEN G156XW01 V4 | |
| Panel Brand | AUO |
| Panel Model | G156XW01 V4 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(horizontal)×193.536(vertical) mm |
| Bezel Opening | 347.54(horizontal)×196.83(vertical) mm |
| Outline Size | 363.8(horizontal)×215.9(vertical) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 62% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Used for | Industrial |
| Touchscreen | Without |
| Panel Weight | 860±40g |
| Signal Interface | 30 pins eDP (1 Lane) , eDP1.2 , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| AUO vertical stripe 15.6 lcd panel G156XW01 V4 1366*768 LCD SCREEN | |
