15.6" Innolux LCD Panel N156HCE-GN1 RGB Vertical Stripe Laptop LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | N156HCE-GN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N156HCE-GN1 (CMN150C) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 350.66 × 216.25 × 2.6 (H×V×D) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | Antiglare Innolux LCD Panel,Innolux LCD Panel N156HCE-GN1,3.3V Laptop LCD Screen |
||
Product Description
Innolux 15.6" LCD Panel N156HCE-GN1 RGB Vertical Stripe Laptop LCD Screen Display
N156HCE-GN1 (CMN150C) Product details :
| Innolux LCD SCREEN N156HCE-GN1 (CMN150C) | |
| Manufacturer | Innolux |
| Model Name | N156HCE-GN1 (CMN150C) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.25 × 2.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/9 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M/1.06B 100% sRGB |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

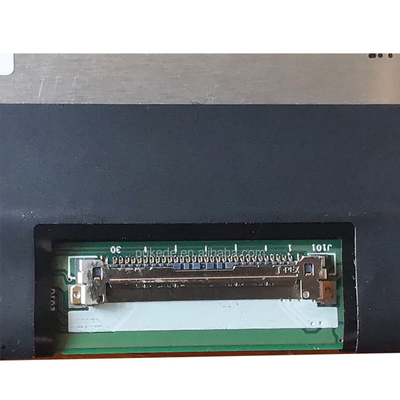

| Signal Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Innolux 15.6" LCD Panel N156HCE-GN1 RGB Vertical Stripe Laptop LCD Screen Display | |
N156HCE-GN1 (CMN150C) Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
N156HCE-GN1 (CMN150C) Shipping and Package :
N156HCE-GN1 (CMN150C) Attention:
We always ship in 1-3 business day. Tracking number will be provided for all package. The tracking number will be sent to you once your order has been shipped. Any problem, pls feel free to contact us. We will try best to make you 100% satisfied. Thanks!
N156HCE-GN1 (CMN150C) Shipment Information:
All the parts will be tested before shipment.
We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
N156HCE-GN1 (CMN150C) Warranty terms:
1.Warranty remains valid for 6 months from the date of delivery.
2.If any product is defective,please take photos of its working condition and then send photos to us.Our technicians will analyze the problem and offer solutions.
3.If the problem is still not solved under our technicians help,please safely pack the defective screens and send back to us within warranty period.After we receive the defective screens,we will send new and good replacements to you.
N156HCE-GN1 (CMN150C) FAQ :
Q: How can I trace my order of N156HCE-GN1 (CMN150C) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of N156HCE-GN1 (CMN150C) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of N156HCE-GN1 (CMN150C) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of N156HCE-GN1 (CMN150C) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
