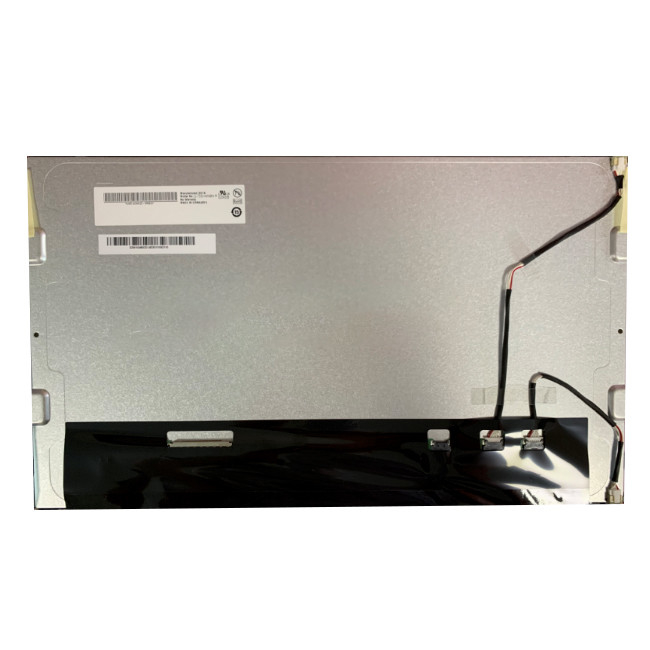

LVDS 15.6" LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156HAN04.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156HAN04.0 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 363.8 × 215.9 × 10.82 (H×V×D) | Bezel Area(mm): | 347.06 × 196.49 (H×V) |
| Mass: | 850g (Max.) | Used For: | Industrial / Outdoor High Brightness |
| High Light: | Industrial LCD Screen Display G156HAN04.0,LVDS 15.6" LCD Panel,Matte 15.6" LCD Panel |
||
Product Description
15.6" LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display
G156HAN04.0 Product details :
| AUO LCD SCREEN G156HAN04.0 | |
| Panel Brand | AUO |
| Panel Model | G156HAN04.0 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080(FHD) 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.06(W)×196.49(H) mm |
| Outline Size | 363.8(W)×215.9(H)×10.82(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 850g (Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 70 °C ; Storage: -30 ~ 70 °C |
| 15.6" LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display | |
G156HAN04.0 Our service:
1. We ship within 2~5days as soon as possible；
2. We support sample service, MOQ = 1；
3. We have strong R & D and production capabilities and have sufficient inventory；
4. We will innovate and develop new products every month；
5. We are OEM / ODM；
6. We are at your service 24 hours. Product quality issues can be returned at any time；
7. We ship your products with the fastest and best logistics；
G156HAN04.0 Shipping and Package :
G156HAN04.0 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
G156HAN04.0 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
G156HAN04.0 FAQ :
Q: Can you give me a discount if I need a large quantity of G156HAN04.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G156HAN04.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of G156HAN04.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of G156HAN04.0 ?
A: we will give you tracking number then you can trace your order from website.
