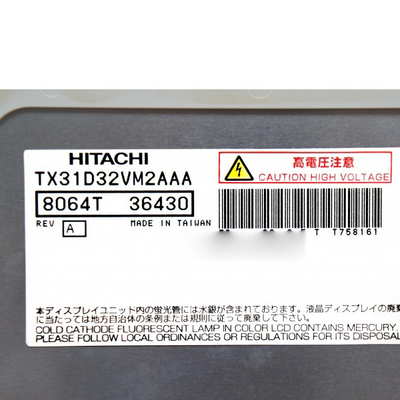

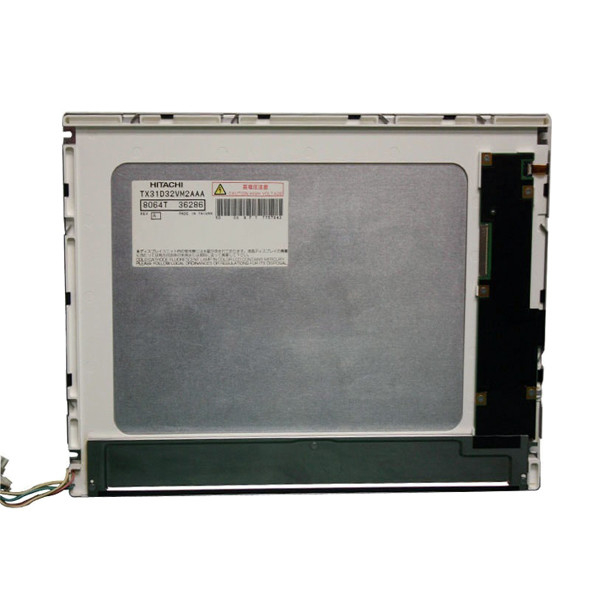

TX31D32VM2AAA HITACHI LCD Screen 400 Cd/M2 20 Pins LVDS Hard Coating Surface
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HITACHI |
| Model Number: | TX31D32VM2AAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TX31D32VM2AAA | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 (SVGA) 82PPI | Display Area: | 246 × 184.5 (H×V) |
| Outline Size: | 280 × 210 × 13.5 (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Color Depth: | 16.7M , 65% NTSC | Application: | Industrial |
| High Light: | TX31D32VM2AAA HITACHI LCD Screen,HITACHI LCD Screen 400 cd/m2,Hard Coating HITACHI LCD Screen |
||
Product Description
12.1 inch 82ppi lcd screen TX31D32VM2AAA 800*600 20 pins Display
TX31D32VM2AAA Product details :
| HITACHI LCD Screen TX31D32VM2AAA | |
| Panel Brand | HITACHI |
| Panel Model | TX31D32VM2AAA |
| screen size | 12.1 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600 SVGA 82PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 246 × 184.5 (H×V) |
| Bezel Area(mm) | 250.0 × 188.5 (H×V) |
| Outline(mm) | 280 × 210 × 13.5 (H×V×D) |
| Surface | Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 65/65/55/65 (Typ.) (CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 16.7M , 65% NTSC |
| Response time | 15/10 (Typ.)(Tr/Td) ms |
| Backlight type | CCFL [2 pcs] , no driver |
| refresh rate | 60Hz |
| Touch Screen | Without |
| Designed For | Industrial |
| screen weight | 700g (Typ.) |
| signal system | 20 pins LVDS (1 ch, 8-bit) , terminal |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Operating temperature: 0 ~ 70 °C ; Storage temperature: -20 ~ 70 °C ; Vibration resistance: 2.0G (19.6 m/s²) |
| 12.1 inch 82ppi lcd screen TX31D32VM2AAA 800*600 20 pins Display | |
TX31D32VM2AAA Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
TX31D32VM2AAA Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
TX31D32VM2AAA Payment:
T/T, WESTERN UNION, PAYPAL
Kindly Notice
1. Import duties taxes and other customs related charges are not included in the price
2. If you pay for it by PayPal, please confirm that your payment address is the same as your PayPal address
TX31D32VM2AAA About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
TX31D32VM2AAA Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
TX31D32VM2AAA FAQ :
Q: Can you tested the TX31D32VM2AAA before shipping ?
A: Of course , our lcd panel TX31D32VM2AAA was Strictly tested before shipping.
Q: How to order HITACHI TX31D32VM2AAA ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd TX31D32VM2AAA ?
A: 90 days .
Q: What happen if the lcd panel TX31D32VM2AAA I received can't work ?
A: HITACHI TX31D32VM2AAA was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
TX31D32VM2AAA Shipping and Package :
