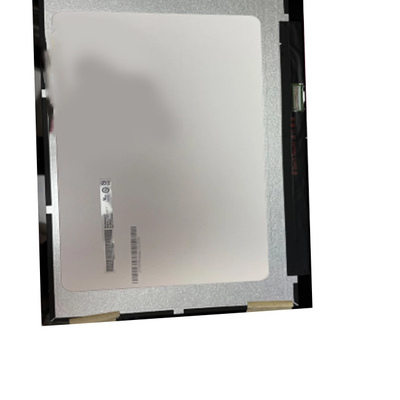

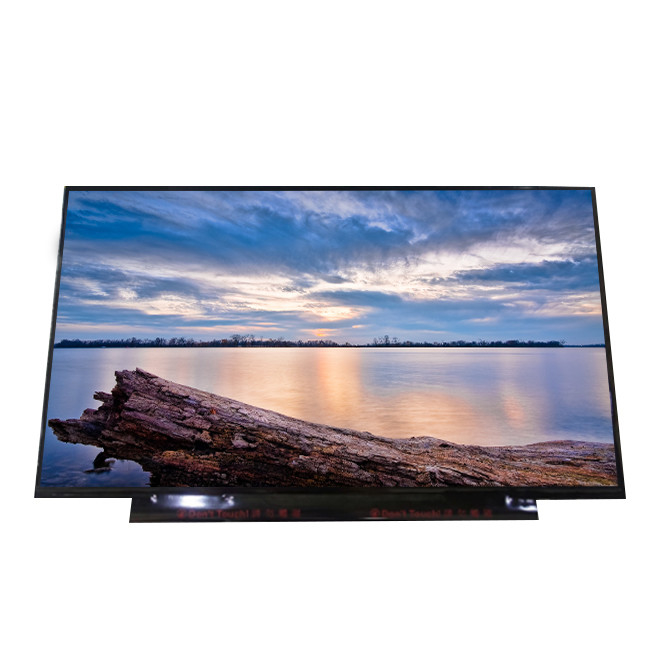

15.6" AUO LCD Panel G156HAN01.0 RGB Vertical Stripe 141PPI Industrial LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156HAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156HAN01.0 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Bezel Opening: | 347.06(W)×196.49(H) Mm | Outline Size: | 363.8(W)×215.9(H)×9.8(D) Mm |
| Panel Weight: | 0.94/1.04Kgs (Typ./Max.) | Application: | Industrial / Medical Imaging |
| High Light: | AUO LCD Panel G156HAN01.0,EDP AUO LCD Panel,141PPI Industrial LCD Screen Display |
||
Product Description
AUO 15.6" LCD Panel G156HAN01.0 RGB Vertical Stripe 141PPI Industrial LCD Screen Display
G156HAN01.0 Product details :
| AUO LCD SCREEN G156HAN01.0 | |
| Panel Brand | AUO |
| Panel Model | G156HAN01.0 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080(FHD) 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16 × 193.59 (H×V) mm |
| Bezel Opening | 347.06 × 196.49 (H×V) mm |
| Outline Size | 363.8 × 215.9 × 9.8 (H×V×D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 16.2M , 72% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 0.94/1.04Kgs (Typ./Max.) |
| Signal Interface | eDP (2 Lanes) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 70 °C ; Storage: -30 ~ 70 °C |
| AUO 15.6" LCD Panel G156HAN01.0 RGB Vertical Stripe 141PPI Industrial LCD Screen Display | |
G156HAN01.0 Top Quality:
All screens are New&Original with original factory sealed package
Fully Testing make sure every screen you got is work perfec
G156HAN01.0 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
G156HAN01.0 Shipping and Package :
G156HAN01.0 Shipping Term:
If you are urgently need your item, please choose DHL, FedEx or EMS etc Express shipping, it will save much time on delivery, and you will receive your package in a short time, please note. Thanks!
G156HAN01.0 Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
G156HAN01.0 FAQ :
Q: Can You declare my order of G156HAN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of G156HAN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of G156HAN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G156HAN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
