EV156FHM-N10 15.6" LCD Panel RGB 1920×1080 Industrial LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | EV156FHM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | EV156FHM-N10 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 363.8(H)×216(V)×9.9(D) Mm | Bezel Area: | 348.2(H)×197.6(V) Mm |
| Weight: | 850g (Max.) | Designed For: | Industrial / Medical Imaging |
| High Light: | EV156FHM-N10 15.6" LCD Panel,Hard coating 15.6" LCD Panel,500 cd/m2 Industrial LCD Screen Display |
||
Product Description
15.6" LCD Panel EV156FHM-N10 1920(RGB)×1080 Vertical Stripe Industrial LCD Screen Display
EV156FHM-N10 Product details :
| BOE LCD SCREEN EV156FHM-N10 | |
| Manufacturer | BOE |
| Model Name | EV156FHM-N10 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |

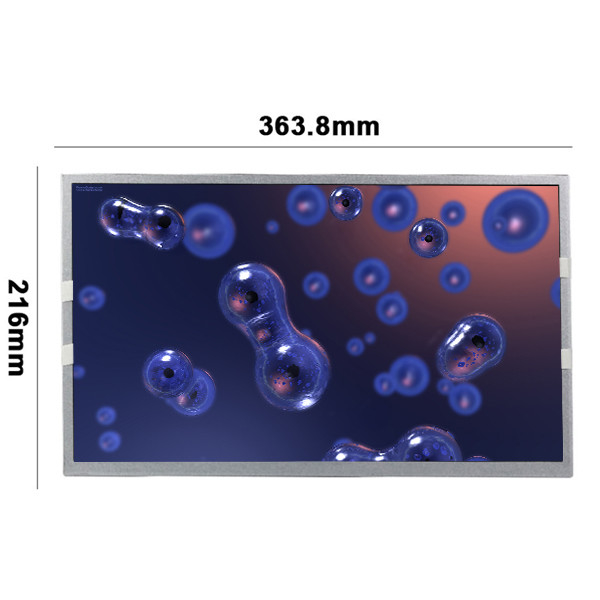

| Outline(mm) | 363.8 × 216 × 9.9 (H×V×D) |
| Bezel Area(mm) | 348.2 × 197.6 (H×V) |
| Treatment | Hard coating |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 79% NTSC |
| Backlight | 8S4P WLED , 50K hours , With LED Driver |
| Mass | 850g (Max.) |
| Used for | Industrial / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| 15.6" LCD Panel EV156FHM-N10 1920(RGB)×1080 Vertical Stripe Industrial LCD Screen Display | |
