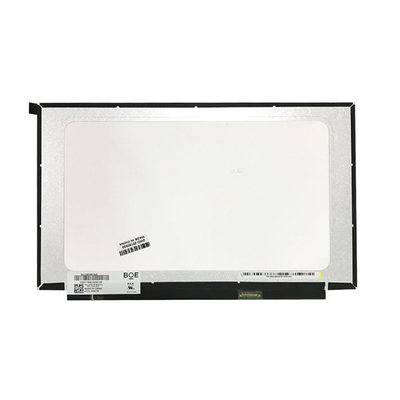

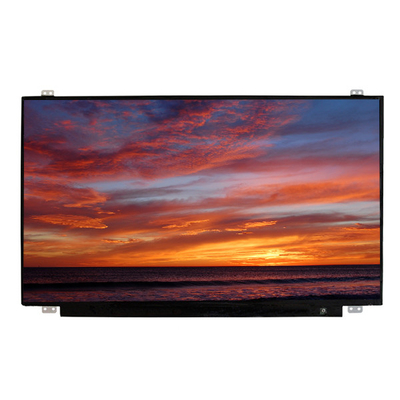

BOE 15.6" LCD Panel Display NV156FHM-N35 1920×1080 Vertical Stripe Laptop LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Model Number: | NV156FHM-N35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV156FHM-N35 (BOE06B4) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 350.76 × 216.2 × 3.2 (H×V×D) | Work Mode: | ADS, Normally Black, Transmissive |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
Product Description
BOE 15.6" LCD Panel Display NV156FHM-N35 1920×1080 Vertical Stripe Laptop LCD Screen
NV156FHM-N35 (BOE06B4) Product details :
| BOE LCD SCREEN NV156FHM-N35 (BOE06B4) | |
| Manufacturer | BOE |
| Model Name | NV156FHM-N35 (BOE06B4) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.76 × 216.2 × 3.2 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE 15.6" LCD Panel Display NV156FHM-N35 1920×1080 Vertical Stripe Laptop LCD Screen | |
It is only part of our lcds. Send Inquiry for the other lcds you cannot find. We love talking!
Contact us for other size, resolution, interface, touch screen and any other problem. We will reply you soon.
NV156FHM-N35 (BOE06B4) About the quality:
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to our saleman .
We will be willing to deal with your problem at the first time .
NV156FHM-N35 (BOE06B4) Shipping and Package :
NV156FHM-N35 (BOE06B4) Shipping Details:
1) Can Ship by express such as DHL.FEDEX,EMS,TNT,UPS, or by Sea, by air, it's depends on your requirement.(The express shipping time is about 3 to 7 working days.)
2) The tracking number will be informed after 1 day the package delivered.
3) we will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
NV156FHM-N35 (BOE06B4) Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
NV156FHM-N35 (BOE06B4) Refund&Return:
1. If the items is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
NV156FHM-N35 (BOE06B4) FAQ :
Q: If I place order now,when will you ship the goods of NV156FHM-N35 (BOE06B4) ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of NV156FHM-N35 (BOE06B4) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of NV156FHM-N35 (BOE06B4) ?
A: We accept T/T , Paypal , western union .
