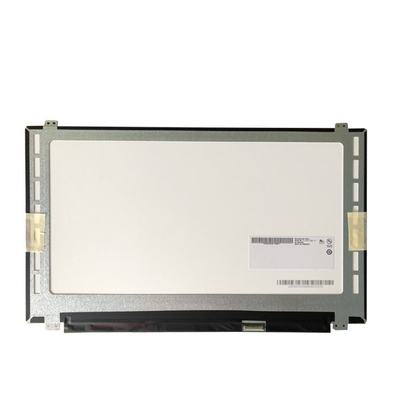

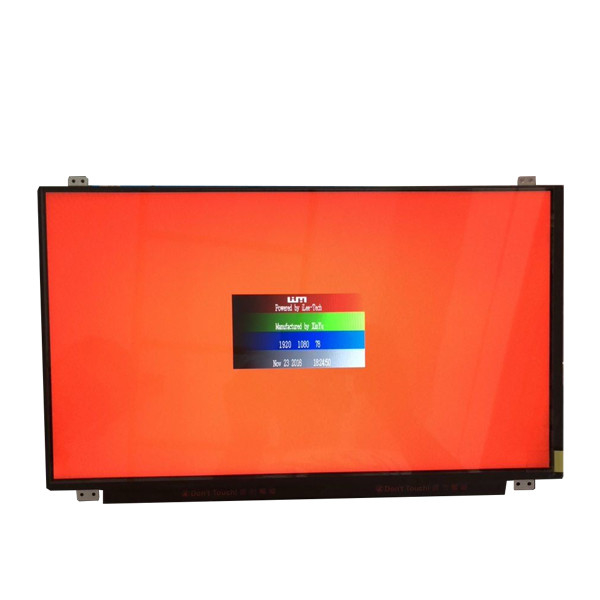

AUO 15.6" LCD Panel G156HTN01.0 1920×1080 Vertical Stripe Industrial LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156HTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156HTN01.0 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 359.5(W)×224.3(H)×3.55(D) Mm | Surface: | Antiglare (Haze 25%) |
| Weight: | 400g (Max.) | Application: | Industrial |
Product Description
AUO 15.6" LCD Panel G156HTN01.0 1920×1080 Vertical Stripe Industrial LCD Display
G156HTN01.0 Product details :
| AUO LCD SCREENG G156HTN01.0 | |
| Brand | AUO |
| Model | G156HTN01.0 |
| Diagonal Size | 15.6" |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080, FHD, 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Outline Dim. | 359.5(H)×224.3(V) ×3.55(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 6/3 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 60% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Weight | 400g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| AUO 15.6" LCD Panel G156HTN01.0 1920×1080 Vertical Stripe Industrial LCD Display | |
G156HTN01.0 Our services:
1. Original quality guarantee.
2. Superior After-Sale service;
3. Small order quantity accepted.
4. Offer 12 months of warranty;
5. Experienced staff can help you to solve your problem anytime.
G156HTN01.0 Shipping and Package :
G156HTN01.0 Bulk Packaging:
Your screen will be shipped with original factory package(with inner PP and foam protective) which has been provided that safe enough for long journey.
G156HTN01.0 Shipping :
1.Most powerful shipping agency, professional/fast shipping.
2.Delivery time is withine 3-7 working days to the worldwide normally.
3. lmport duties taxes and charges are not included in item price or shipping fees.
G156HTN01.0 Warranty:
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guarranteed during warranty period of 1 year beginning with the invoice date.
3.We can do OEM of the High Brightness LCD moudle as required .
During the warranty, if panels’ electronic functions problems occur, customers provide the photos to illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s electronic problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
G156HTN01.0 FAQ :
Q: Can You declare my order of G156HTN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods G156HTN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of G156HTN01.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of G156HTN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
