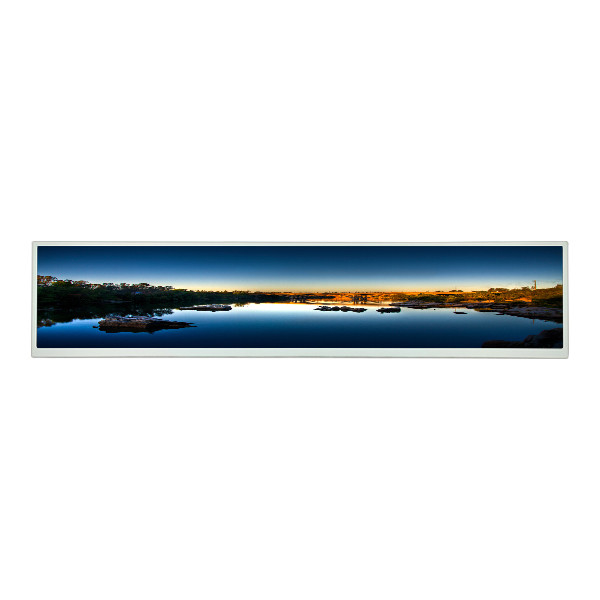

innolux stretched bar lcd Screen 36 inch S360AJ1-LE1 1920(RGB)×532 LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | S360AJ1-LE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | S360AJ1-LE1 | Panel Size: | 36" |
|---|---|---|---|
| Resolution: | 1920(RGB)×532, 55PPI | Active Area: | 878.112(W)×239.081(H) Mm |
| Bezel Opening: | 880.91(W)×243.68(H) Mm | Outline Size: | 895.51(W)×267.48(H)×15(D) Mm |
| Panel Weight: | TBD | Application: | Digital Signage / Stretched Bar LCD |
Product Description
innolux stretched bar lcd Screen 36 inch S360AJ1-LE1 1920(RGB)×532 LCD panel
S360AJ1-LE1 Product details :
| Innolux LCD Screen S360AJ1-LE1 | |
| Manufacturer | Innolux |
| Model Name | S360AJ1-LE1 |
| Screen Size | 36 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×532 55PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 78.112 × 239.081 (H×V) |
| Outline(mm) | 895.51 × 267.48 × 15 (H×V×D) |
| Bezel Area(mm) | 880.91 × 243.68 (H×V) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H |
| Luminance | 500 (Typ.)(cd/m²) |
| Contrast Ratio | 4500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 9.5 (Typ.)(G to G) ms |
| Color Depth | 16.7M 74% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | TBD |
| Used for | Digital Signage / Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| innolux stretched bar lcd Screen 36 inch S360AJ1-LE1 1920(RGB)×532 LCD panel | |
S360AJ1-LE1 Quality control :
Checking the surface to avoid any physical damage and scratches.
Testing the LCD Screen & Digitizer strictly under different pictures to see whetherthere are any dead pixels, dust or spots.
Testing the products with a real main board to see whether they are perfectly com-patible with phones.
Both human and machine testing for the LCD & Touch Screen at second time toensure the item is qualified.
S360AJ1-LE1 Payment:
S360AJ1-LE1 Shippment & Packing
S360AJ1-LE1 Shipping:
1. DHL/UPS/Fedex Express usually takes about 3-5 working days to the destination. And it’s about 5-8 working days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel take 7 to 30 days to ship to the worldwide.
2. We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
S360AJ1-LE1 Excellent After-sale Service:
180 days Warranty
Your inquiry will be replied within 1 hours
You will be support by Passion & Professinal Sales Team and Sctrict QC Team
S360AJ1-LE1 FAQ:
Q: If I place order now,when will you ship the goods of S360AJ1-LE1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of S360AJ1-LE1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of S360AJ1-LE1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
