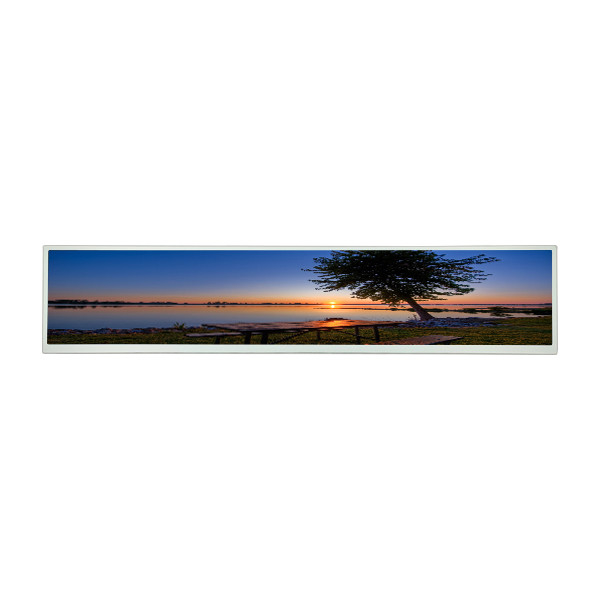

innolux stretched bar lcd Screen 35 inch S350AJ1-LE1 2880×158 lcd display panel module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | S350AJ1-LE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | S350AJ1-LE1 | Diagonal Size: | 35 Inch |
|---|---|---|---|
| Pixel Format: | 2880×158(RGB) 83PPI | Active Area: | 878.4(H)×48.19(V) Mm |
| Outline Dim.: | 891.6(H)×60.4(V)×15.5(D) Mm | Bezel Area: | 880.4(H)×50(V) Mm |
| Weight: | TBD | Designed For: | Digital Signage / Stretched Bar LCD |
Product Description
innolux stretched bar lcd Screen 35 inch S350AJ1-LE1 2880×158 lcd display panel module
S350AJ1-LE1 Product details :
| Innolux LCD Screen S350AJ1-LE1 | |
| Panel Brand | Innolux |
| Panel Model | S350AJ1-LE1 |
| Panel Size | 35" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2880×158(RGB), 83PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 878.4(W)×48.19(H) mm |
| Bezel Opening | 880.4(W)×50(H) mm |
| Outline Size | 891.6(W)×60.4(H)×15.5(D) mm |
| Surface | Antiglare (Haze 40%), Hard coating (2H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9.5 (Typ.)(G to G) |
| Display Colors | 1.07B 72% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Digital Signage / Stretched Bar LCD |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| Interface Type | V-by-One 8 lane 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -20 ~ 60 °C |
| innolux stretched bar lcd Screen 35 inch S350AJ1-LE1 2880×158 lcd display panel module | |
S350AJ1-LE1 Our Services:
All the inquiries will be replied within 2 hours, with 12 hours at weekends
All LCD screen will be tested piece by piece before ship out.
All the documents will prepared for your customs.
Have any new or short models will informed you as the first time.
S350AJ1-LE1 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
S350AJ1-LE1 Shippment & Packing
S350AJ1-LE1 About Transportation :
Our company adopts the most safe mode of transportation, the science guarantee your goods safe and fast arrive to your hands!!!
When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accept the goods .Please contact me and sent photo about product to me as soon as possible .I will complaint the delivery company
Fast & Cheap Delivery:We have big discount from forwarder (Long Contract). Our lead time is 1-3 days
S350AJ1-LE1 Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale.Please contact with us.
S350AJ1-LE1 FAQ:
Q: Can you give me a discount if I need a large quantity of S350AJ1-LE1?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of S350AJ1-LE1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of S350AJ1-LE1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of S350AJ1-LE1 ?
A: we will give you tracking number then you can trace your order from website.
