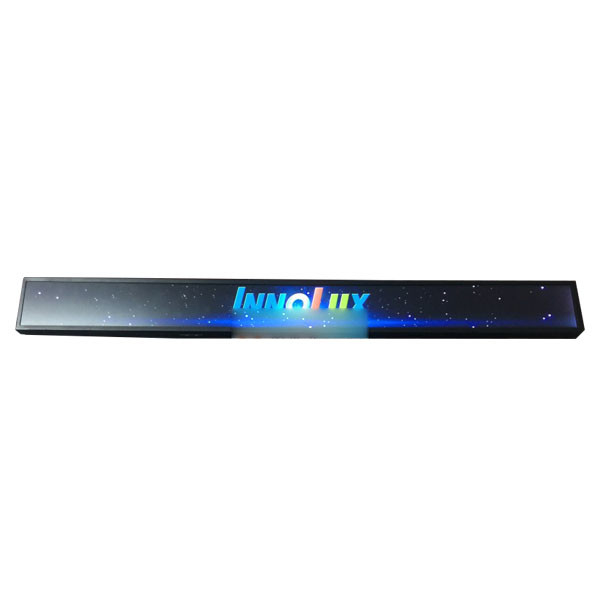

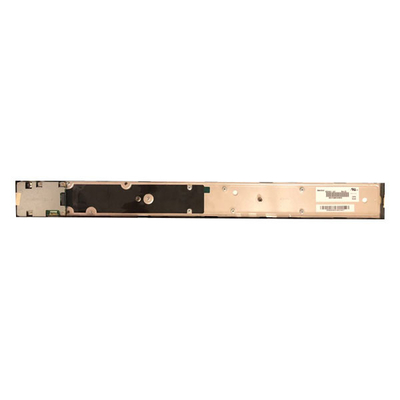

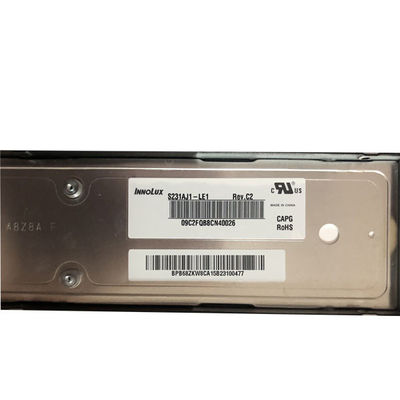

innolux stretched bar lcd Screen 23.1 inch 1920×158 S231AJ1-LE1
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | S231AJ1-LE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | S231AJ1-LE1 | Screen Size: | 23.1 Inch (Native Bar) |
|---|---|---|---|
| Pixel Number: | 1920×158(RGB) 83PPI | Active Area(mm): | 585.6 × 48.19 (H×V) |
| Outline(mm): | 597.4 × 60.4 (H×V×D) | Bezel Area(mm): | 587.6 × 50 (H×V) |
| Mass: | TBD | Used For: | Digital Signage / Stretched Bar LCD |
Product Description
innolux stretched bar lcd Screen 23.1 inch 1920×158 S231AJ1-LE1
S231AJ1-LE1 Product details :
| Innolux LCD SCREEN S231AJ1-LE1 | |
| Manufacturer | Innolux |
| Model Name | S231AJ1-LE1 |
| Screen Size | 23.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920×158(RGB) 83PPI |
| Arrangement | RGB Horizontal Stripe |
| Active Area(mm) | 585.6 × 48.19 (H×V) |
| Outline(mm) | 597.4 × 60.4 (H×V×D) |
| Bezel Area(mm) | 587.6 × 50 (H×V) |
| Treatment | Antiglare (Haze 1%), Antireflection |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20) |
| Response | 9.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 16.7M 99% sRGB |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | TBD |
| Used for | Digital Signage / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| innolux stretched bar lcd Screen 23.1 inch 1920×158 S231AJ1-LE1 | |
S231AJ1-LE1 Before you ordered:
1,Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen.
2,We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.If you can't accept it , please don't make the order . Thanks for your understanding.
3,please confirm whether the zip code and city of the address are correct be fore pacing the order avoid delay in delivery
4,All items are tested before shipment.
5,Your satisfaction is our goal!Thank you
S231AJ1-LE1 Product test:
Our company has plenty of machines to test all kinds of products.To ensure product quality,our company techinests Conduct a rigorous screening when purchasing.And our techniests test again when shipping the products to our customers.Because our products has a warranty (product damaged), We are responsible for our products.Please feel free to purchase,we can give you the best quality and best products.Because of Fierce competition price transparency,we used to adhere to a "small profits but quick turnover"principle.
S231AJ1-LE1 Payment:
We can accept T/T,Western Union,PayPal,L/C at sight etc.If you have another payment methods please let us know.
S231AJ1-LE1 Shippment & Packing
Packing:
We pack in cardboard boxes and bubble wrap, which is safe and guarantees that every customer will receive the perfect screen
S231AJ1-LE1 Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
S231AJ1-LE1 FAQ:
Q: How can I trace my order of S231AJ1-LE1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of S231AJ1-LE1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of S231AJ1-LE1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
