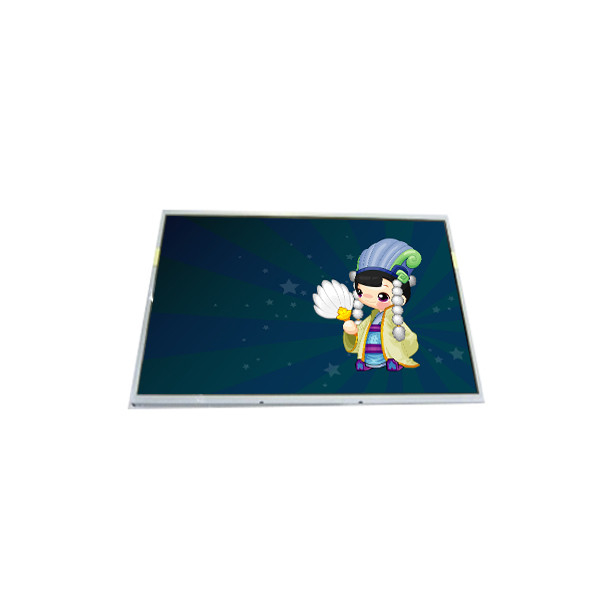

LM230WF3-SLA1 23.0 Inch LCD Screen 1920*1080 FHD LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM230WF3-SLA1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Outline Dim.: | 533.2(W)×312(H)×12(D) Mm | Display Colors: | 16.7M 68%NTSC |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
| Signal Interface: | LVDS (2 Ch, 8-bit), 30 PinsConnector | Input Voltage: | 12.0V (Typ.) |
Product Description
LM230WF3-SLA1 23.0 Inch LCD Screen 1920*1080 FHD LCD Panel
LM230WF3-SLA1 Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLA1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Size | 533.2(W)×312(H)×12(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 68%NTSC |
| Frequency | 60Hz |
| Weight | 1.75/1.85Kgs (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | 4 strings WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LM230WF3-SLA1 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LM230WF3-SLA1 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LM230WF3-SLA1 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
LM230WF3-SLA1 Shipping:
1. DHL/UPS/Fedex Express usually takes about 3-5 working days to the destination. And it’s about 5-8 working days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel take 7 to 30 days to ship to the worldwide.
2. We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
LM230WF3-SLA1 FAQ:
Q: Can You declare my order of LM230WF3-SLA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM230WF3-SLA1 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LM230WF3-SLA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LM230WF3-SLA1 Shippment & Packing
