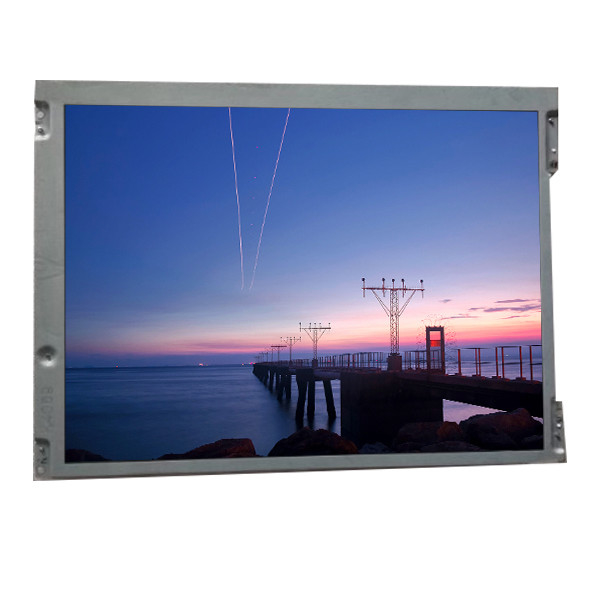

Name: 12.1 inch 82ppi lcd screen LQ121S1LG42 Display Screen Replacement
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ121S1LG42
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1LG42
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

LQ121S1LG42

Panel Size:

12.1"

Resolution:

800(RGB)×600, SVGA, 82PPI

Display Area:

246(W)×184.5(H) Mm

Bezel Opening:

249.0(W)×187.5(H) Mm

Outline Size:

276(W)×209(H)×11(D) Mm

Panel Weight:

660g (Max.)

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

12.1 inch 82ppi lcd screen LQ121S1LG42 Display Screen Replacement

LQ121S1LG42 Product details :

Sharp LCD Screen LQ121S1LG42
Panel Brand	Sharp
Panel Model	LQ121S1LG42
screen size	12.1inches
Panel Type	LCM, a-Si TFT-LCD
Resolution	800(RGB)×600, SVGA, 82PPI
Pixel configuration	RGB Vertical Stripe
Display size	246(W)×184.5(H) mm
visible size	249.0(W)×187.5(H) mm
physical dimension	276(W)×209(H) × 11(D) mm
Surface	Matte, Hard coating (3H)
Brightness	370 (Typ.)
Contrast Ratio	450 : 1 (Typ.) [Transmission]
Viewing Angle	70/70/50/60 (Typ.) (CR≥10)
Optical mode	TN, Normally White, Transmissive
Number of colors	262K , 50% NTSC
Response time	15/30 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Backlight type	2 pcs CCFL , 50K hours, without driver
refresh rate	60Hz
Touch Screen	Without
Used for	Industrial
screen weight	660g (Max.)
signal system	LVDS (1 ch, 6-bit) , 20 pins Connector
Supply voltage	3.3/5.0V (Typ.)
maximum rating	Storage temperature: -30 ~ 70 °C Operating temperature: -10 ~ 65 °C
12.1 inch 82ppi lcd screen LQ121S1LG42 Display Screen Replacement

LQ121S1LG42 Our Advantage:

* Prompt reply within 12 hours

* Products with top quality

* More than 10 years of experience in LCD R and D and manufacturing

* Strong R &D team supports customized projects

* Fabulous after-sale service

LQ121S1LG42 Payment:

We support the following payment methods, if you have other payment, please contact us to check it before your purchase.

12.1 inch 82ppi lcd screen LQ121S1LG42 Display Screen Replacement 0

LQ121S1LG42 Shippment & Packing

12.1 inch 82ppi lcd screen LQ121S1LG42 Display Screen Replacement 1

LQ121S1LG42 Shipment:

1.The goods will be shipped within 1-2 working days after payment is received.

2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.

3. The buyer is responsibel for any tax or duty charged by their country.

LQ121S1LG42 Return/Refund :

1.We provide different warranty for different products.

2. Please inform us within 7 days if you receive any defective goods from us. The returned items has to be its original condition to qualify for a refund or replacement.

LQ121S1LG42 Fast and Safe Purchase:

If you want to buy goods quickly, we can do Trade Assurance Order with you. It will keep your payment safe.

LQ121S1LG42 FAQ:

Q: Can You declare my order of LQ121S1LG42 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LQ121S1LG42 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of LQ121S1LG42 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LQ121S1LG42 ?

A: we will give you tracking number then you can trace your order from website.
