12.1 inch 82ppi lcd screen LQ121S1LG79 Industrial LCD TFT Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ121S1LG79 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ121S1LG79 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 265(H)×205(V)×10(D) Mm | Bezel Area: | 249.6(H)×188.1(V) Mm |
| Weight: | 550g (Max.) | Designed For: | Industrial |
Product Description

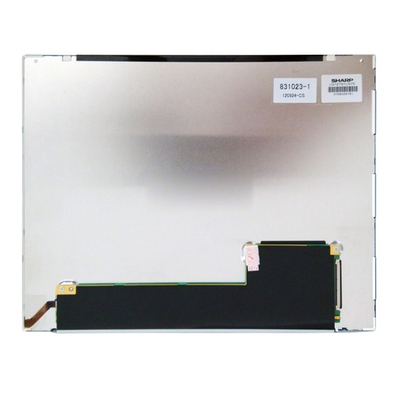

12.1 inch 82ppi lcd screen LQ121S1LG79 Industrial LCD TFT Display
LQ121S1LG79 Product details :
| Sharp LCD Screen LQ121S1LG79 | |
| Panel Brand | Sharp |
| Panel Model | LQ121S1LG79 |
| screen size | 12.1inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 246 × 184.5 mm (H×V) |
| visible size | 249.6 × 188.1 mm (H×V) |
| physical dimension | 265 × 205 × 10 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 330 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 16.2M , 100% sRGB |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Backlight type | WLED , 50K hours, with LED driver |
| refresh rate | 60Hz |
| Touch Screen | Without |
| screen weight | 550g (Max.) |
| Used for | Industrial |
| signal system | LVDS (1 ch, 8-bit) , terminal, 30 pins |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Storage temperature: -30 ~ 75 °C Operating temperature: -10 ~ 75 °C |
| 12.1 inch 82ppi lcd screen LQ121S1LG79 Industrial LCD TFT Display | |
LQ121S1LG79 Our Advantage:
1. High quality
2. Competitive price
3.Secure payment
4. Fast delivery
5. Excellent service
6. More than 10 year experience
If you have any inquiry, feel free to contact us.
LQ121S1LG79 Payment:
We accept T/T (Bank Transfer), Western Union, Paypal,Credit card, Visa, Escrow
We offer flexible payment terms including COD(NET) terms to good customers.
LQ121S1LG79 Shippment & Packing
LQ121S1LG79 Packing term:
* Protect product with polyfoam and multiple layer paper board
* Special protect carton for exporting product
* As Per customer's requirement
LQ121S1LG79 Delivery term:
* For samples, we usually will keep a few stocks and ship within 3-7 working days
* We usually arrange DHL, UPS, FedEx express to ship samples
* For bulk orders, usually 25-30 working days
* For bulk orders, we support shipping by air or by sea as per customers requirements
LQ121S1LG79 FAQ:
Q: How can I trace my order of LQ121S1LG79 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of LQ121S1LG79 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of LQ121S1LG79 ?
A: we will give you tracking number then you can trace your order from website.
