12.1 inch 82ppi lcd screen LTM12C289 800(RGB)×600 TFT LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTM12C289 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LTM12C289 | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.0(W)×187.5(H) Mm | Outline Size: | 278.3(W)×209(H)×14(D) Mm |
| Panel Weight: | 750g (Typ.) | Application: | Industrial |
Product Description
12.1 inch 82ppi lcd screen LTM12C289 800(RGB)×600 TFT LCD Panel Display
LTM12C289 Product details :
| Toshiba Matsushita LCD SCREEN LTM12C289 | |
| Brand | Toshiba Matsushita |
| Model | LTM12C289 |
| Diagonal Size | 12.1 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 82PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 246(H)×184.5(V) mm |
| Outline Dim. | 278.3(H)×209(V) ×14(D) mm |
| Bezel Area | 249.0(H)×187.5(V) mm |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |

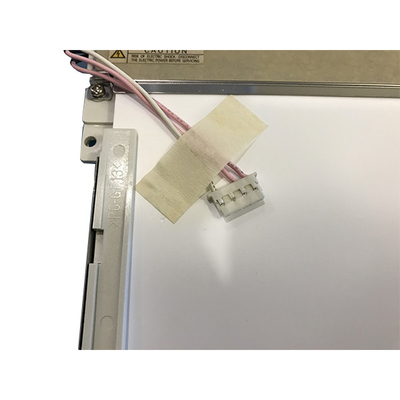

| Light Source | CCFL [2 pcs] , 50K hours , W/O Driver |
| Weight | 750g (Typ.) |
| Designed For | Industrial |
| Touch Panel | No touch |
| Interface Type | Parallel RGB (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM12C289 Orignal 12.1 inch 800(RGB)×600 TFT LCD Panel Display | |
Why Choose US?
1. Over 12 years of experience.
2. Support sample order quickly.
3. Fast delivery time.
4. 1 -3 years warranty.
5. Super high cost performance.
6. Professional quality inspection team.
LTM12C289 Our Service:
For non-human damage warranty:
Our factory will provide one year warranty for LCD panel and three years for the parts. Non-human damage during the warranty period: Buyer returns the product to our factory for repairing and bears the shipping freight. After the maintenance, our factory will send it back and bears the shipping freight. If the freight is higher than the damaged parts, we will send good parts to the buyer directly free of charge. If having large quantities quality problem,our factory will send technicians for repairing, and bears all maintenance costs.
For human damage warranty:
Buyer sends back damaged products back to our factory. Our factory technician will repair and send it back. Buyer bears the freight and the cost of repairing parts. Lifelong maintenance after 1 years of warranty. Our factory is responsible for the lifelong maintenance, but will not bear the cost of repairing parts and freight.
LTM12C289 Payment term:
L/C,D/P,D/A,Western,Parameter,the usual payment is paypal.T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
LTM12C289 Shippment & Packing
LTM12C289 Packing:
12 months warranty .lifetime maintainance.ROHS, CE & FCC certificates in e-file format are available.1pc, sample order are welcome for your evaluation.Pressure proof plastic bag and carton.
LTM12C289 Shipping:
some products will be delivered by DHL.or tell us what do you want to use the mode of transportation.
LTM12C289 FAQ:
Q: Can you give me a discount if I need a large quantity of LTM12C289 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of LTM12C289 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LTM12C289 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
