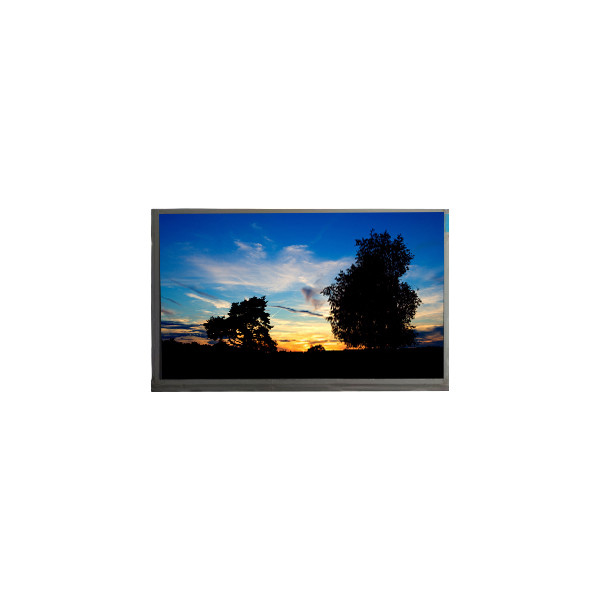

M101NWT2 R4 10.1 Inch 1024*600 LCD Screen Display for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101NWT2 R4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M101NWT2 R4 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Dim.: | 243(H)×146.5(V)×3.8(D) Mm | Treatment: | Antiglare, Hard Coating |
| Display Colors: | 262K 45%NTSC | Designed For: | Netbook PC |
| Viewing Angle: | 75/75/50/60 (Typ.)(CR≥10) | Operating Mode: | TN, Normally White, Transmissive |
Product Description
M101NWT2 R4 10.1 Inch 1024*600 LCD Screen Display for Netbook PC
M101NWT2 R4 Product details :
| Brand | IVO |
| Model P/N | M101NWT2 R4 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | - |
| Outline Dim. | 243(H)×146.5(V)×3.8(D) mm |
| Treatment | Antiglare, Hard coating |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED, 10K hours, With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
M101NWT2 R4 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: M101NWT2 R4
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
M101NWT2 R4 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
M101NWT2 R4 Return and feedback
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
M101NWT2 R4 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within 3 working days after receiving the order.
4. Delivery time will normally be 8 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping, it is faster than others.
5. * The United States, United Kingdom and Australia can take between 7 and 30 working days.
6. * Canada may take 8-35 business days.
7. * France / Spain / Germany may take 8-30 business days.
8. * Eastern Europe may take 16-30 business days.
9. * Italy / Brazil / South America may take 30-50 business days.
10. * shipped by DHL Express: 8-12 business days (you need to pay extra fee).
M101NWT2 R4 FAQ:
Q: How to order lcd panel M101NWT2 R4 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
M101NWT2 R4 Shippment & Packing
