LCD Screen Display Panel
>

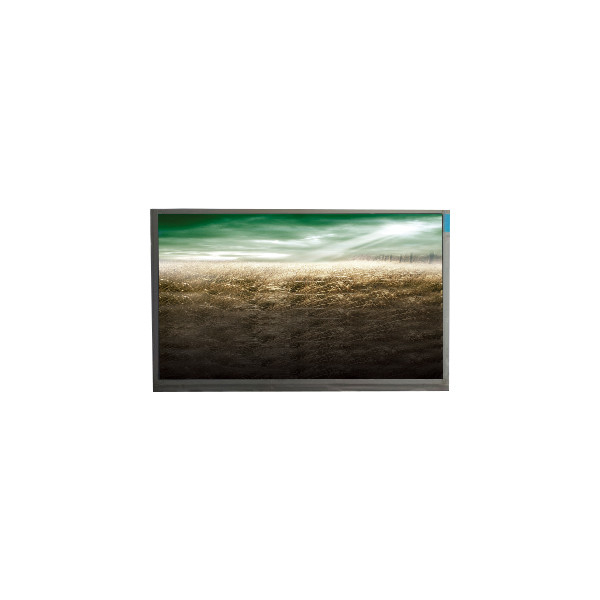

P190MWW3 R0 19.0 Inch 1440*900 60Hz LCD Screen Display

P190MWW3 R0 19.0 Inch 1440*900 60Hz LCD Screen Display

Brand Name: IVO
Model Number: P190MWW3 R0
MOQ: 10pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model:
P190MWW3 R0
Diagonal Size:
19.0"
Pixel Format:
1440(RGB)×900, WXGA+ 89PPI
Active Area:
408.24(W)×255.15(H) Mm
Outline Dim.:
418.66 × 265.67× 1.83 (H×V×D)
Treatment:
Antiglare, Hard Coating
Display Colors:
16.7M 72%NTSC
Designed For:
Desktop Monitor
Refresh Rate:
60Hz
Signal Type:
LVDS (2 Ch, 8-bit), 30 PinsConnector
Supply Ability:
100000 Unit/Units per Month
Product Description

P190MWW3 R0 19.0 Inch 1440*900 60Hz LCD Screen Display



P190MWW3 R0 Product details :



Brand IVO
Model P/N P190MWW3 R0
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, CELL, FOB
Resolution 1440(RGB)×900, WXGA+ 89PPI
Pixel Format RGB Vertical Stripe
Active Area 408.24(W)×255.15(H) mm
Bezel Opening -
Outline(mm) 418.66 × 265.67× 1.83 (H×V×D)
Treatment Antiglare, Hard coating
Luminance 0 cd/m²
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/75 (Typ.)(CR≥10)
Response 5 (Typ.)(Tr+Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Glass Thickness 0.70+0.70 mm
Transmissivity 5.5% (Typ.)(with Polarizer)
Color Depth 16.7M 72%NTSC
Backlight No B/L
Mass 455g (Typ.)
Used for Desktop Monitor
Refresh Rate 60Hz
Touchscreen Without
Driver IC list Built-in COG 6 source COF + 3 gate COG chips
Signal Type LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C



P190MWW3 R0 NOTE:



1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.



2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.



•3-->The LCD model name in your hand, such as: P190MWW3 R0



•4-->Your notebook computer name, such as: brand,specific model



•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!



P190MWW3 R0 Note:



1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!



2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!



3: After receiving the product, if there is a problem, please contact customer service to solve it!



P190MWW3 R0 Return and feedback


All returns must be informed before returning.



The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.



Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.

Return items must have all original packaging and in good condition.



Return postage and insurance charge is non-refundable for refund or new shipment.

Shipping fees are non-refundable.



P190MWW3 R0 Delivery time is approx:



United States / United Kingdom / Australia 7-14 working days.



Canada 7-25 working days.



France / Spain / Germany may take 7-20 working days.



Eastern Europe may take up to 16-30 working days.



Italy / Brazil / South America may take up to 30-50 working days.



Shipped by DHL Express (Need 3-6 working days to arrive)



P190MWW3 R0 FAQ:



Q: How to order lcd panel P190MWW3 R0 ?

A: We accept T/T , Paypal , western union .



Q: Can you tested the P190MWW3 R0 before shipping ?

A: Of course , lcd screen P190MWW3 R0 was Strictly tested before shipping.



Q: What happen if the P190MWW3 R0 received can't work ?

A: P190MWW3 R0 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .



Q: How long the warranty of the P190MWW3 R0 ?

A: 90 days .



P190MWW3 R0 Shippment & Packing

P190MWW3 R0 19.0 Inch 1440*900 60Hz LCD Screen Display 0
