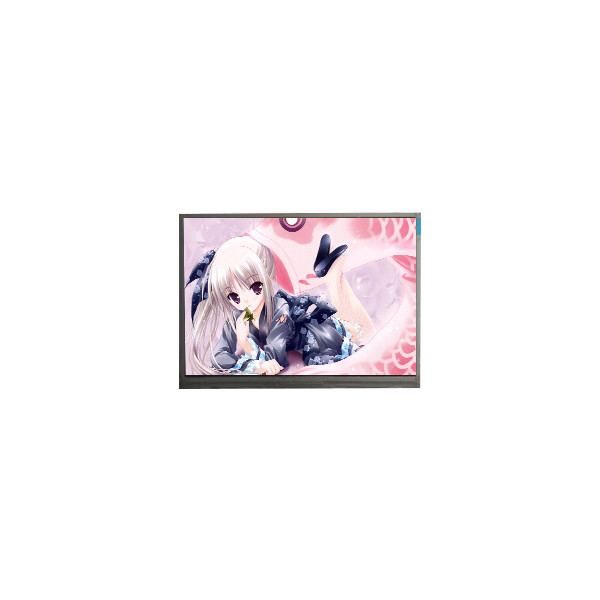

AT070TN93 V.3 7.0 Inch 800*480 LCD Screen for Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | AT070TN93 V.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AT070TN93 V.3 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA 134PPI | Active Area: | 154.08(W)×85.92(H) Mm |
| Outline Dim.: | 184.4(W)×116.85(H) ×7.95(D) Mm | Luminance: | 320 Cd/m² (Typ.) |
| Display Colors: | 16.7M 75% NTSC | Designed For: | Digital Photo Frame |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 50 Pins FPC | Touch Panel: | PCAP, I²C |
Product Description
AT070TN93 V.3 7.0 Inch 800*480 LCD Screen for Digital Photo Frame
AT070TN93 V.3 Product details :
| Brand | Chimei Innolux |
| Model P/N | AT070TN93 V.3 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | - |
| Outline Dim. | 184.4(W)×116.85(H) ×7.95(D) mm |
| Treatment | - |
| Luminance | 320 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M 75% NTSC |
| Light Source | WLED , 20K hours , Without Driver |
| Panel Weight | 234g (Typ.) |
| Designed For | Digital Photo Frame |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
