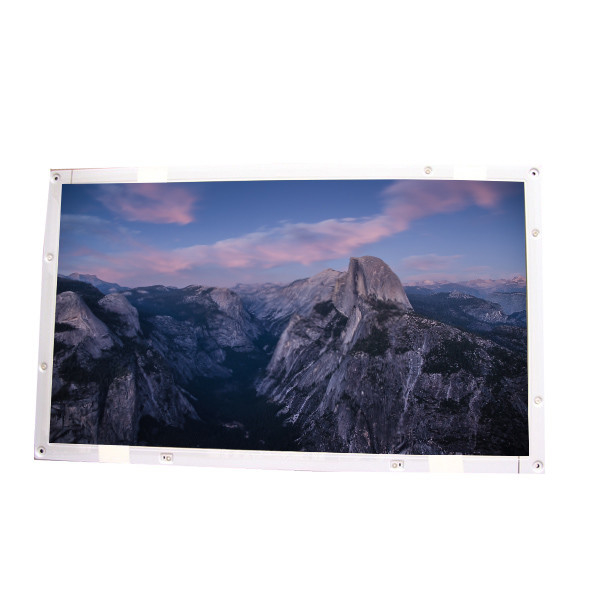

T260XW04 V4 30 Pins 26 Inch LCD Screen 1366*768 for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW04 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | T260XW04 V4 | Diagonal Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA, 60PPI | Active Area: | 575.769(W)×323.712(H) Mm |
| Outline Dim.: | 626(W)×373(H) Mm | Bezel Area: | 580.8(W)×328.8(H) Mm |
| Display Colors: | 16.7M 72% NTSC | Designed For: | TV Sets |
Product Description
T260XW04 V4 30 Pins 26 Inch LCD Screen 1366*768 for AUO
T260XW04 V4 Product details :
| AUO LCD SCREEN T260XW04 V4 | |
| Panel Brand | AUO |
| Panel Model | T260XW04 V4 |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.8(W)×328.8(H) mm |
| Outline Size | 626(W)×373(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 6.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 4 pcs CCFL , 50K hours , With Inverter |
| Frequency | 60Hz |
| Designed Fo | TV Sets |
| Touch Screen | Without |
| Panel Weight | 4.50Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW04 V4 30 Pins 26 Inch LCD Screen 1366*768 for AUO | |
T260XW04 V4 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: LM140LF1L02
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
T260XW04 V4 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
T260XW04 V4 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
T260XW04 V4 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
T260XW04 V4 FAQ:
Q: Do you accept sample orders of T260XW04 V4 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of T260XW04 V4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods T260XW04 V4 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
T260XW04 V4 Shippment & Packing
