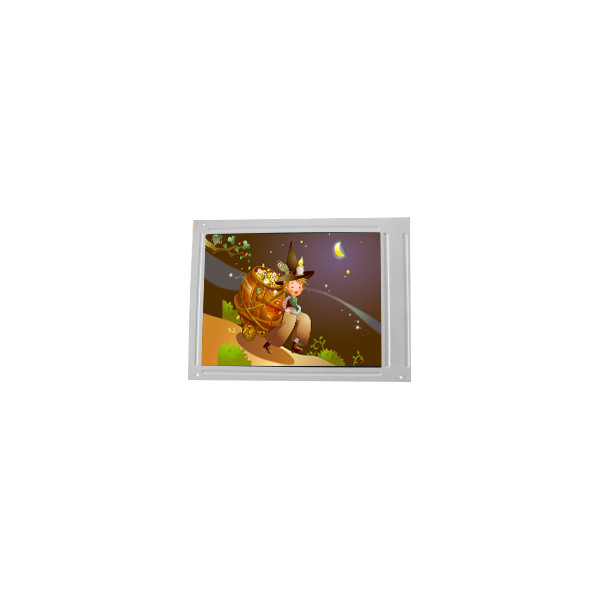

N101LGE-P21 10.1 Inch 1024*600 LCD Screen 1024*600 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | N101LGE-P21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N101LGE-P21 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Dim.: | 231.45(W)×134(H) ×1.27(D) Mm | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Display Colors: | 262K 44% NTSC | Designed For: | Netbook PC |
| Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
N101LGE-P21 10.1 Inch 1024*600 LCD Screen 1024*600 LCD Display
N101LGE-P21 Product details :
| Brand | Chimei Innolux |
| Model P/N | N101LGE-P21 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | - |
| Outline Dim. | 231.45(W)×134(H) ×1.27(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 7.05% (Typ.)(with Polarizer) |
| Support Color | 262K 44% NTSC |
| Light Source | No B/L |
| Shape Style | - |
| Designed For | Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 2 source + 2 gate chips |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
N101LGE-P21 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: N101LGE-P21
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
N101LGE-P21 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
N101LGE-P21 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
N101LGE-P21 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
N101LGE-P21 FAQ:
Q: If I order N101LGE-P21 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for N101LGE-P21 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of N101LGE-P21 ?
A: Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of N101LGE-P21 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of N101LGE-P21 ?
A: we will give you tracking number then you can trace your order from website.
N101LGE-P21 Shippment & Packing
