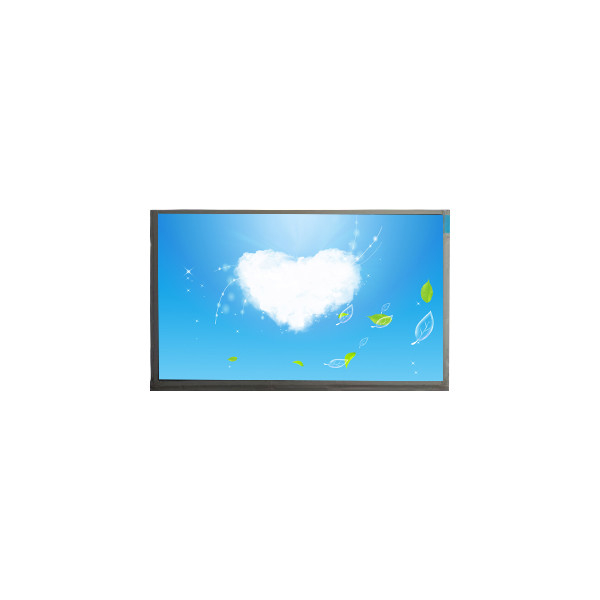

N101LGE-P11 10.1 Inch 1024*600 LCD Screen for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | N101LGE-P11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N101LGE-P11 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Dim.: | 231.45(W)×134(H)×1.27(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Display Colors: | 262K 44% NTSC | Designed For: | Netbook PC |
| Frame Rate: | 60Hz | Signal Type: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
N101LGE-P11 10.1 Inch 1024*600 LCD Screen for Netbook PC
N101LGE-P11 Product details :
| Brand | Chimei Innolux |
| Model P/N | N101LGE-P11 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | - |
| Outline Dim. | 231.45(W)×134(H)×1.27(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) ms |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 7.05% (Typ.)(with Polarizer) |
| Support Color | 262K 44% NTSC |
| Light Source | No B/L |
| Shape Style | - |
| Designed For | Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | Built-in COG 2 source + 2 gate chips |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
N101LGE-P11 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
N101LGE-P11 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
N101LGE-P11 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
N101LGE-P11 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
N101LGE-P11 FAQ:
Q: If I place order now,when will you ship the goods of N101LGE-P11 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of N101LGE-P11 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods N101LGE-P11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of N101LGE-P11 ?
A: We accept T/T , Paypal , western union .
N101LGE-P11 Shippment & Packing
