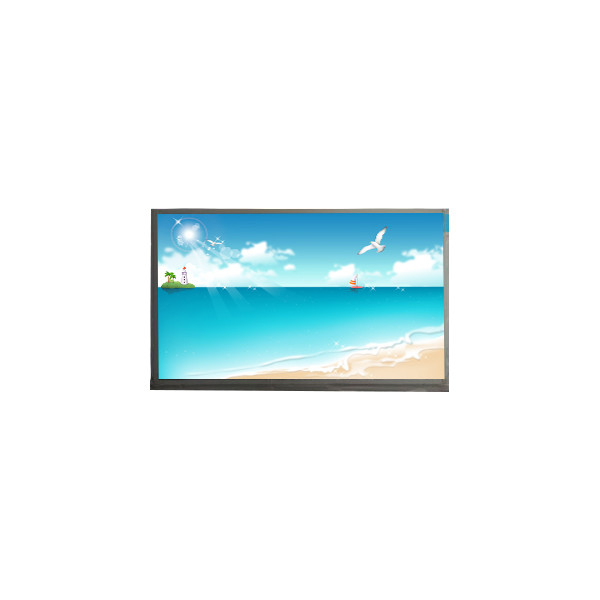

Original MT215DW02 V.0 21.5 Inch 1080p LCD Screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | MT215DW02 V.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | MT215DW02 V.0 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.64(W)×268.11(H) Mm |
| Outline Dim.: | 495.6×292.2×11.5 (H×V×D) | Bezel Area: | 479.84(W)×271.3(H) Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
| D-IC Detail: | LVDS (2 Ch, 8-bit) , Connector 30 Pins | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Product Description
Original MT215DW02 V.0 21.5 Inch 1080p LCD Screen panel
MT215DW02 V.0 Product details :
| Brand | Chimei Innolux |
| Model P/N | MT215DW02 V.0 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.84(W)×271.3(H) mm |
| Outline Dim. | 495.6×292.2×11.5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 14S8P WLED , 30K hours , No Driver |
| Mass | 2.00/2.10Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| D-IC Detail | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
MT215DW02 V.0 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
MT215DW02 V.0 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
MT215DW02 V.0 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
MT215DW02 V.0 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
MT215DW02 V.0 FAQ:
Q: How to make payment of MT215DW02 V.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of MT215DW02 V.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of MT215DW02 V.0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods MT215DW02 V.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
MT215DW02 V.0 Shippment & Packing
