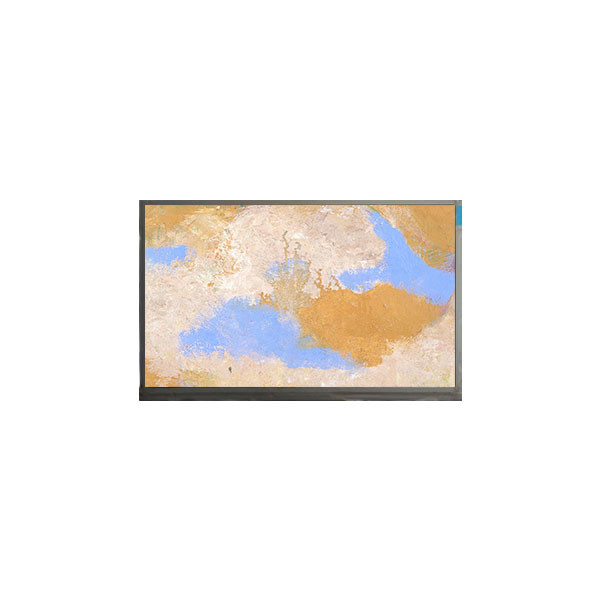

M156B3-LA1 15.6 Inch LCD Screen 1366*768 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M156B3-LA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M156B3-LA1 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Outline Dim.: | 363.8×215.9×11.6 (H×V×D) | Bezel Area: | 347.5(W)×196.8(H) Mm |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
| Signal Type: | LVDS (1 Ch, 8-bit), Connector30 Pins | Voltage Supply: | 5.0V (Typ.) |
Product Description
M156B3-LA1 15.6 Inch LCD Screen 1366*768 LCD Display
M156B3-LA1 Product details :
| Brand | CMO |
| Model P/N | M156B3-LA1 2 Compatible |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.5(W)×196.8(H) mm |
| Outline (mm) | 363.8×215.9×11.6 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 2/6 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 65%NTSC |
| Backlight | 12S8PWLED, 30K hours, No Driver |
| Mass | 1.06/1.08Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), Connector30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
