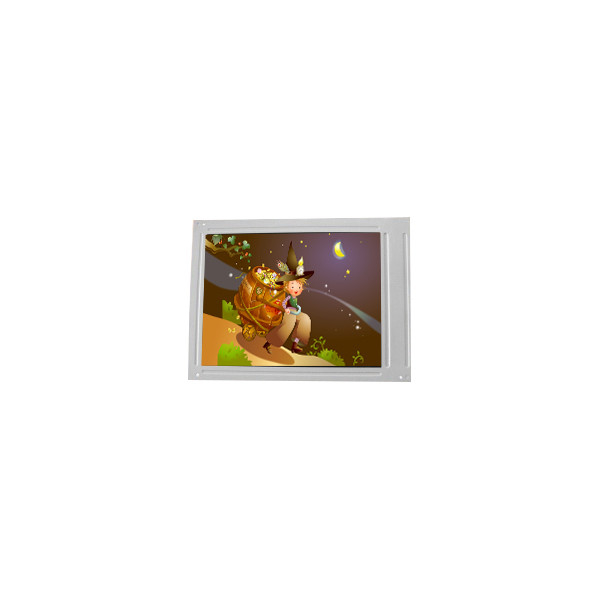

M185B5-LA1 18.5 Inch 1366*768 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M185B5-LA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M185B5-LA1 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Outline Dim.: | 430.37(H)×254.6(V) ×13.4(D) Mm | Bezel Area: | 413.4(W)×234.0(H) Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR＞10) | Designed For: | Desktop Monitor |
| Frame Rate: | 75Hz | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
M185B5-LA1 18.5 Inch 1366*768 LCD Screen Display
M185B5-LA1 Product details :
| Brand | Chimei Innolux |
| Model P/N | M185B5-LA1 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Dim. | 430.37(H)×254.6(V) ×13.4(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR＞10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [13S8P] , 30K hours , W/O Driver |
| Weight | 1.65/1.70Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
M185B5-LA1 Our company:
Because of we have stock many kinds of electronic components, so can not upload one by one, if you can't find what you need in our store, please contact us, we will offer in the first time. Thank you in advance.
M185B5-LA1 Warranty & Maintenance:
We offer the 1month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.We also provide 12monthfree maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
M185B5-LA1 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
M185B5-LA1 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
M185B5-LA1 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
M185B5-LA1 FAQ:
Q: How do you ship my goods M185B5-LA1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen M185B5-LA1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of M185B5-LA1 ?
A: 90 days warranty .
M185B5-LA1 Shippment & Packing
