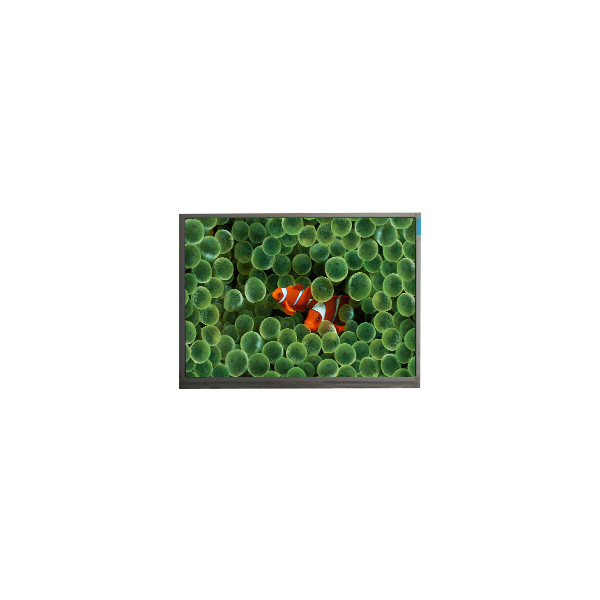

AT080TN62 V.1 8.0 Inch 800*480 LCD Screen 60Hz LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | AT080TN62 V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AT080TN62 V.1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA 116PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Dim.: | 185.2(W)×111(H) ×1.43(D) Mm | Treatment: | Antiglare |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) | Designed For: | Digital Photo Frame ，Portable DVD Player |
Product Description
AT080TN62 V.1 8.0 Inch 800*480 LCD Screen 60Hz LCD Display
AT080TN62 V.1 Product details :
| Brand | Chimei Innolux |
| Model P/N | AT080TN62 V.1 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | - |
| Outline Dim. | 185.2(W)×111(H) ×1.43(D) mm |
| Treatment | Antiglare |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.11% (Typ.)(with Polarizer) |
| Support Color | 262K/16.7M |
| Light Source | No B/L |
| Weight | 60.5±3.0g |
| Designed For | Digital Photo Frame ,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
AT080TN62 V.1 Our company:
Because of we have stock many kinds of electronic components, so can not upload one by one, if you can't find what you need in our store, please contact us, we will offer in the first time. Thank you in advance.
AT080TN62 V.1 Pyment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
AT080TN62 V.1 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
AT080TN62 V.1 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
AT080TN62 V.1 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
AT080TN62 V.1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of AT080TN62 V.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of AT080TN62 V.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods AT080TN62 V.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
AT080TN62 V.1 Shippment & Packing
