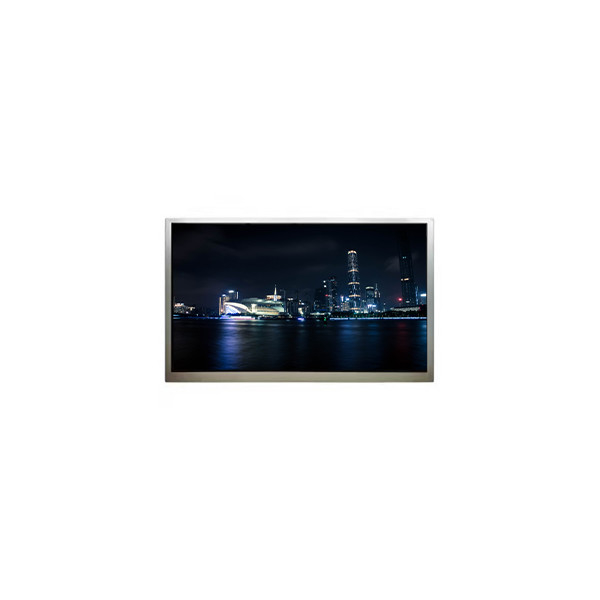

HSD070IDW1-A22 7.0 Inch 800*480 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-A22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD070IDW1-A22 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Outline Dim.: | 165(W)×104(H)×5.4(D) Mm | Bezel Area: | 156.0(W)×89.04(H) Mm |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) | Designed For: | Digital Photo Frame、Portable DVD Player |
| Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
HSD070IDW1-A22 7.0 Inch 800*480 LCD Screen Display
HSD070IDW1-A22 Product details :
| Brand | HannStar |
| Model P/N | HSD070IDW1-A22 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×89.04(H) mm |
| Outline Size | 165(W)×104(H)×5.4(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K/16.2M |
| Frequency | - |
| Weight | 130g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Lamp Type | 3S7P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 60 pinsFPC |
| Input Voltage | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.9G (28.4 m/s²) |
HSD070IDW1-A22 Our company:
Because of we have stock many kinds of electronic components, so can not upload one by one, if you can't find what you need in our store, please contact us, we will offer in the first time. Thank you in advance.
HSD070IDW1-A22 Pyment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
HSD070IDW1-A22 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
HSD070IDW1-A22 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
HSD070IDW1-A22 Refund&Return:
1. If the items is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
HSD070IDW1-A22 FAQ:
Q: How long is the warranty of HSD070IDW1-A22 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD070IDW1-A22 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for HSD070IDW1-A22 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD070IDW1-A22 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
