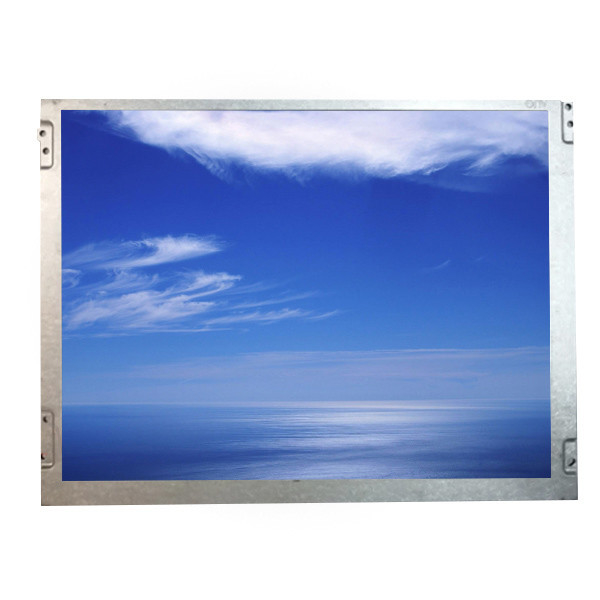

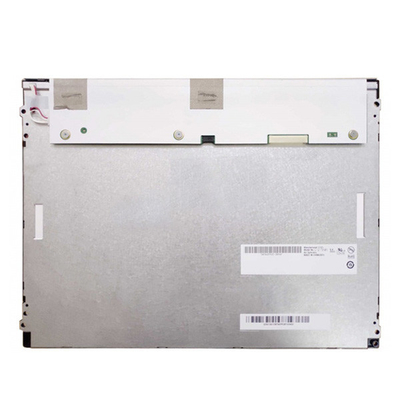

Name: 12.1 inch 82ppi lcd screen G121SN01 V402 AUO IPS TFT LCD Display for Industry
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G121SN01 V402
Availability: InStock

Brand Name:	AUO
Model Number:	G121SN01 V402
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

G121SN01 V402

Panel Size:

12.1"

Resolution:

800(RGB)×600, SVGA, 82PPI

Display Area:

246(W)×184.5(H) Mm

Bezel Opening:

249.05(W)×188.3(H) Mm

Outline Size:

279(W)×209(H)mm

Panel Weight:

580g (Max.)

Application:

Industrial

Signal Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

12.1 inch 82ppi lcd screen G121SN01 V402 AUO IPS TFT LCD Display for Industry

G121SN01 V402 Product details :

AUO LCD SCREEN G121SN01 V402
Panel Brand	AUO
Panel Model	G121SN01 V402
Panel Size	12.1"
Panel Type	a-Si TFT-LCD , LCM
Resolution	800(RGB)×600, SVGA, 82PPI
Pixel Format	RGB Vertical Stripe
Display Area	246(W)×184.5(H) mm
Bezel Opening	249.05(W)×188.3(H) mm
Outline Size	279(W)×209(H) ×9(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	80/80/65/75 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	25/10 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 55% NTSC
Lamp Type	9S2P WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	580g (Max.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
12.1 inch 82ppi lcd screen G121SN01 V402 AUO IPS TFT LCD Display for Industry

G121SN01 V402 About the quality:

All of our product will be testing before shipping . So you can be assured the quality of our products .

However, If you found any problem after received the goods , Please feel free contact to our saleman .

We will be willing to deal with your problem at the first time .

G121SN01 V402 About the payment:

We accept Bank transfer,Western union.Paypal,Escrow.

G121SN01 V402 Shippment & Packing

12.1 inch 82ppi lcd screen G121SN01 V402 AUO IPS TFT LCD Display for Industry 0

G121SN01 V402 Shipment:

1.Most powerful shipping agency, professional/fast shipping.

2. Delivery time is withine 3-7 working days to the worldwide normally.

3. Import duties taxes and charges are not included in item price or shipping fees.

G121SN01 V402 Warranty and Refund:

1.All products will be tested strictly before shipping to make sure they are 100% working well.

2.Please also test them within 3-5 days after received. BUT DO NOT INSTALL before testing(ONLY connect LCD to mainboard for testing). If LCD damaged after Installation,

order Non-Refundable and WARRANTY VOID.

3.we provide 6-month warranty for all our products,but the original labels marked by us must not be removed,nor any of the parts have been used or damaged deliberately.

G121SN01 V402 FAQ:

Q: If I place order now,when will you ship the goods of G121SN01 V402 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of G121SN01 V402 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my order of G121SN01 V402 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders of G121SN01 V402 ?

A: Of course!sample order is welcome !
