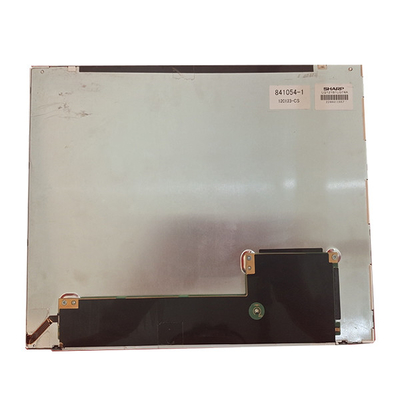

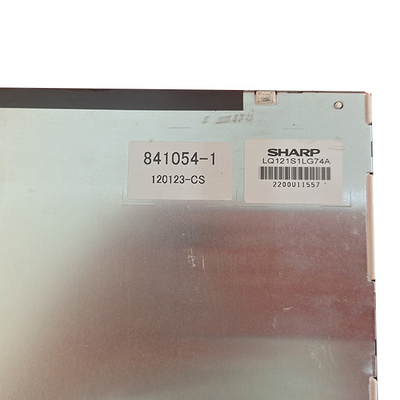

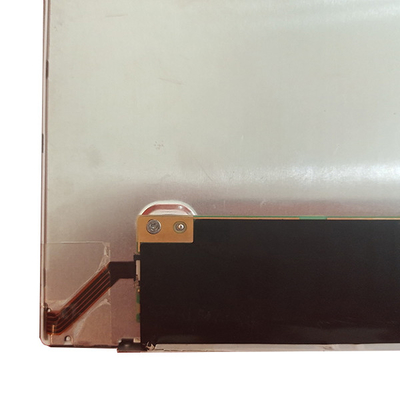

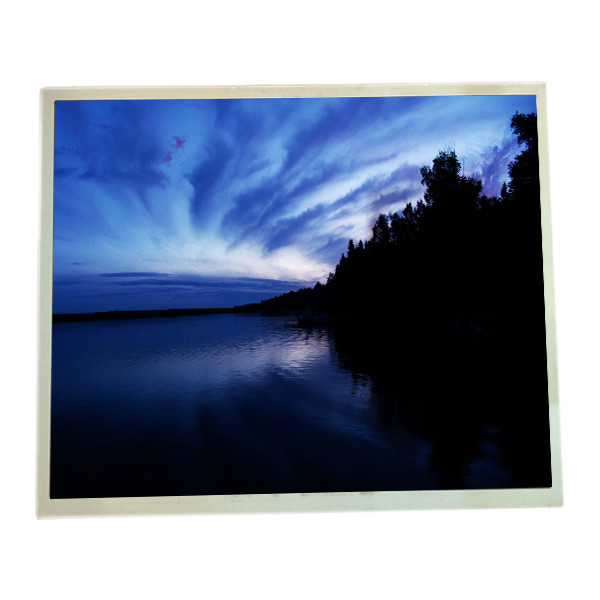

12.1 inch 82ppi lcd screen LQ121S1LG74A 800(RGB)×600 Applied to industrial products
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ121S1LG74A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ121S1LG74A | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 265(H)×205(V)×10(D) Mm | Bezel Area: | 257.3(H)×188.1(V) Mm |
| Weight: | 550g (Max.) | Designed For: | Industrial |
| Interface Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
12.1 inch 82ppi lcd screen LQ121S1LG74A 800(RGB)×600 Applied to industrial products
LQ121S1LG74A Product details :
| SHARP LCD SCREEN LQ121S1LG74A | |
| manufacturer | SHARP |
| Model Name | LQ121S1LG74A |
| screen size | 12.1inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 82PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 246(horizontal)×184.5(vertical) mm |
| physical area | 265 (horizontal) × 205 (vertical) × 10 (thickness) mm |
| open area | 257.3(horizontal)×188.1(vertical) mm |
| Contrast | Matte, Hard coating (3H) |
| Display | 450 cd/m² (Typ.) |
| contrast | 800:1 (Typ.) (Transmission) |
| Viewing angle | 80/80/60/60 (Typ.) (CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 16.7M , 100% sRGB |
| Reaction time | 30 (Typ.)(Tr+Td); |
| Backlight type | WLED , 50K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 550g (Max.) |
| Signal | 30 pins LVDS (1 ch, 8-bit) , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 12.1 inch 82ppi lcd screen LQ121S1LG74A 800(RGB)×600 Applied to industrial products | |
LQ121S1LG74A Our company:
Because of we have stock many kinds of electronic components, so can not upload one by one, if you can't find what you need in our store, please contact us, we will offer in the first time. Thank you in advance.
LQ121S1LG74A Pyment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
LQ121S1LG74A Shippment & Packing
LQ121S1LG74A Shipment:
1.The goods will be shipped within 1-2 working days after payment is received.
2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.
3. The buyer is responsibel for any tax or duty charged by their country.
LQ121S1LG74A Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
LQ121S1LG74A Refund&Return:
1. If the items is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
LQ121S1LG74A FAQ:
Q: Can You declare my order of LQ121S1LG74A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ121S1LG74A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ121S1LG74A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LQ121S1LG74A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
