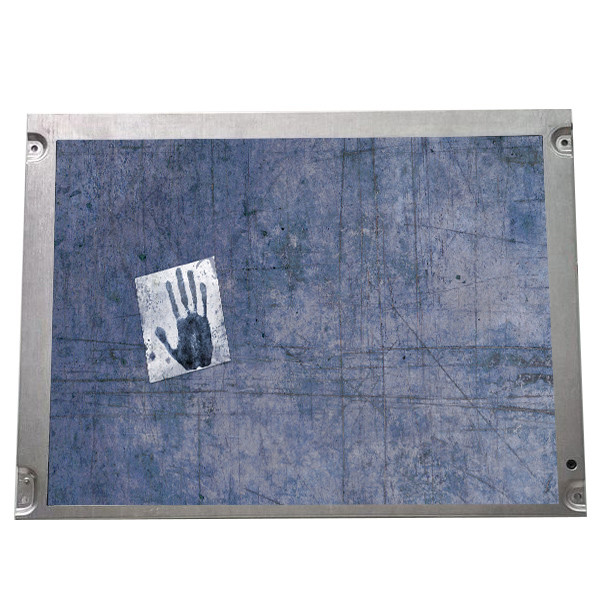

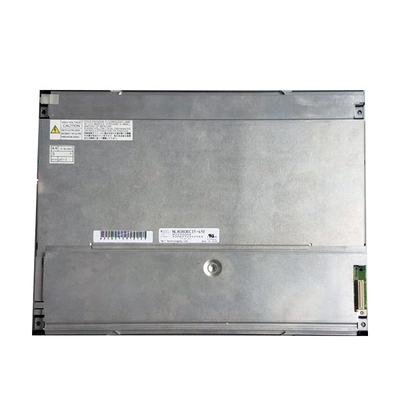

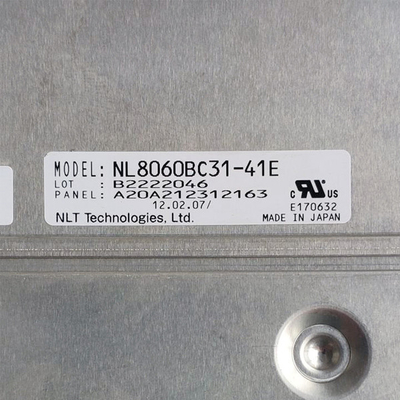

12.1 inch 82ppi lcd screen NL8060BC31-41E 800*600 WLED TFT 20pin CMOS lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-41E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL8060BC31-41E | Diagonal Size: | 12.1" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 280(H)×210(V)mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Light Source: | CCFL [2 Pcs] , W/O Driver | Designed For: | Industrial |
Product Description
12.1 inch 82ppi lcd screen NL8060BC31-41E 800*600 WLED TFT 20pin CMOS lcd display
NL8060BC31-41E Product details :
| NEC LCD Screen NL8060BC31-41E | |
| Manufacturer | NEC |
| Model Name | NL8060BC31-41E |
| Screen Size | 12.1 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)*600, SVGA, 82PPI |
| Pixel layout | RGB vertical bar |
| Display area | 246(W)*184.5(H) mm |
| Viewable area | 249.0(W)*187.5(H) mm |
| physical dimension | 280(W)*210(H) mm |
| Surface treatment | Matte |
| Panel brightness | 400 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Reaction time | 6/19 (Typ.)(Tr/Td) |
| Display color | 262K/16.7M |
| type of light source | 2 pcs CCFL, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| 12.1 inch 82ppi lcd screen NL8060BC31-41E 800*600 WLED TFT 20pin CMOS lcd display | |
NL8060BC31-41E Our service:
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
NL8060BC31-41E After payment:
After your payment please leave your monitor name and screen model ASAP.Once we got it we ship to you soon.We have to personally confirm your bought is correct screen model.
NL8060BC31-41E Shippment & Packing
NL8060BC31-41E Packing:
Standard export package: Bubble bag+hard paper carton
NL8060BC31-41E Delivery customs:
1. We can ship to Worldwide except the listed exclusions countries .
2. Any import tax charge or fee at destination country is buyer's responsibility, pls note it. Also the buyer need to pay remote fees if the deliver address is remote area in DHL/UPS/TNT or Fedex's (express shipping) systerm.Please leave a message in the order if you have any request for the declared amount.
3. You will be notified once the shipment has been made.The packages are safe with signature- required. if None sign for the package, it will be return ,please pick it up in your local post office. .
4. We offer shipping discount for combined shipping.Please contact with us.
5.Due to the epidemic or holidays, the logistics time limit is not stable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer. Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need to specify logistics, leave a message online or note in the order
NL8060BC31-41E Buyer Reading:
1.Please confirm receipt of products if the items you received, and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.
2.We only guarantee delivery in time but we couldn't control the epress delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the net workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the epress company in your company.
NL8060BC31-41E FAQ:
Q: Can You declare my order of NL8060BC31-41E to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL8060BC31-41E ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NL8060BC31-41E ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
