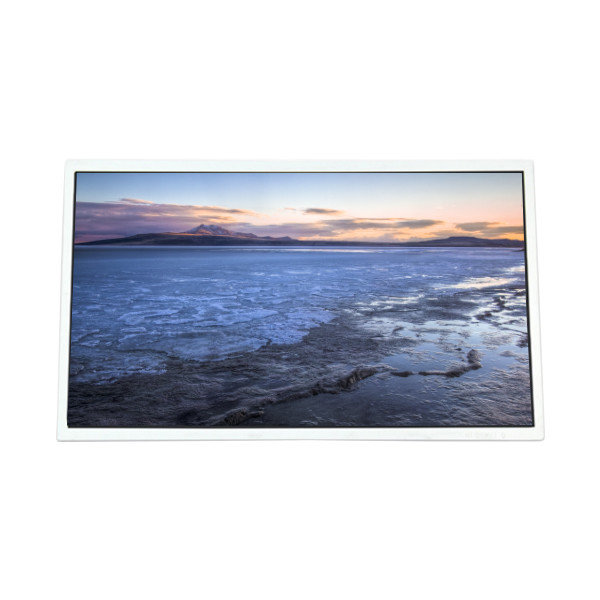

HT185WXB-100 30 Pins 18.5 Inch LCD Screen 1366*768 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HT185WXB-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HT185WXB-100 | Screen Size: | 18.5" |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA 84PPI | Active Area(mm): | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Display Colors: | 16.7M 72%NTSC |
| Viewing Angle: | 45/45/25/40 (Typ.)(CR≥10) | Used For: | Desktop Monitor |
Product Description
HT185WXB-100 30 Pins 18.5 Inch LCD Screen 1366*768 LCD Display
HT185WXB-100 Product details :
| Brand | BOE |
| Model P/N | HT185WXB-100 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Dim. | 430.4(H)×254.6(V)×24.82(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/25/40 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [11S4P], 30K hours, W/O Driver |
| Weight | 1.33Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
