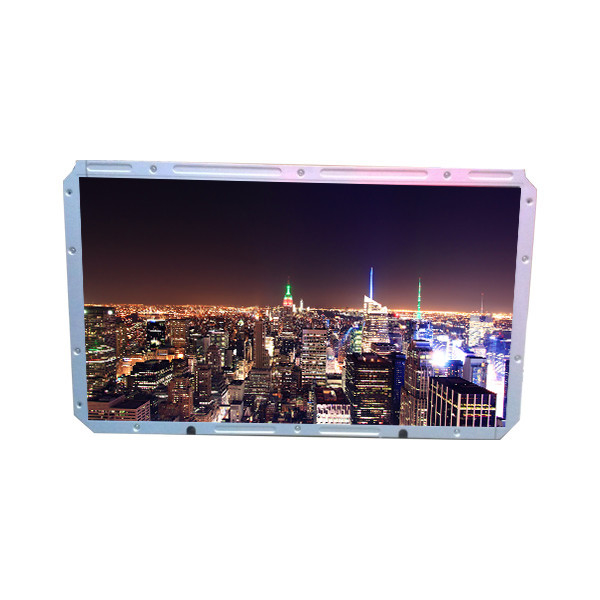

A070SN02 V0 CELL new 7.0 Inch LCD Screen for Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070SN02 V0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A070SN02 V0 CELL | Screen Size: | 7.0" |
|---|---|---|---|
| Pixel Number: | 800×600(RGB), SVGA 143PPI | Active Area(mm): | 141.6(W)×106.2(H) Mm |
| Outline Dim.: | 150(H)×116.5(V) ×1.43(D) Mm | Display Colors: | 16.2M 50% NTSC |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Used For: | Digital Photo Frame ，Portable DVD Player |
Product Description
A070SN02 V0 CELL new 7.0 Inch LCD Screen for Digital Photo Frame
A070SN02 V0 CELL Product details :
| Brand | AUO |
| Model P/N | A070SN02 V0 CELL |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800×600(RGB), SVGA 143PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 141.6(W)×106.2(H) mm |
| Bezel Opening | - |
| Outline Dim. | 150(H)×116.5(V) ×1.43(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.11% (Typ.)(with Polarizer) |
| Support Color | 16.2M 50% NTSC |
| Light Source | No B/L |
| Weight | 53.3g (Typ.) |
| Designed For | Digital Photo Frame ,Portable DVD Player |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source chips |
| Interface Type | TTL (1 ch, 8-bit) + SPI , 60 pins FPC |
| Power Supply | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
A070SN02 V0 CELL NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: A070SN02 V0 CELL
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
A070SN02 V0 CELL Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
A070SN02 V0 CELL Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
A070SN02 V0 CELL Guarantee:
1.All items will be strictly tested before shipping.
2.Warranty is 90 days.
A070SN02 V0 CELL Refund&Return:
1.If the item is defective, pls notify us within 3 days after receiving.
2.Items should be returned with original package if possible.
Gentlehint:Due to regional weather and other factors,thedelivery timeof China Post Ai Mail needs 10 to 50 days. Please be patient when you choose the China Post Air Mail.
A070SN02 V0 CELL FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of A070SN02 V0 CELL ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of A070SN02 V0 CELL via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods A070SN02 V0 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
A070SN02 V0 CELL Shippment & Packing
